KAP1102E

Active

E-Switch

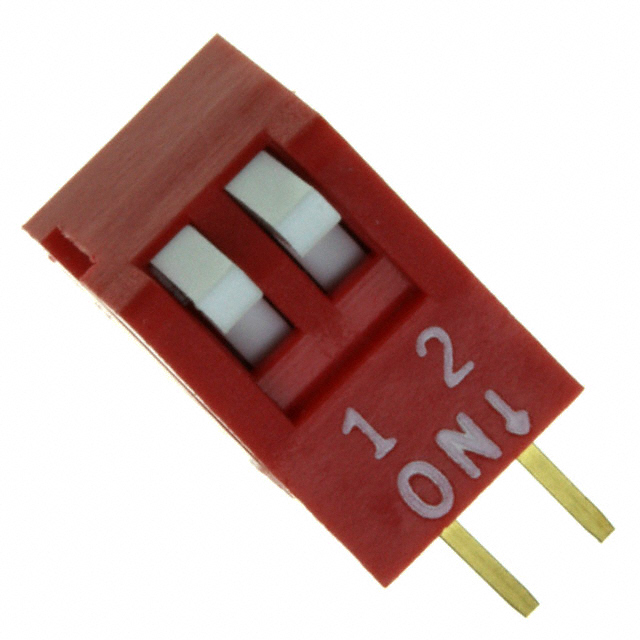

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1102E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	0.261 "
Length	6.63 mm
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Actuator Level	Actuator Type	Number of Positions	Washable	Mechanical Life	Body Material	Contact Material	Electrical Life	Length	Length	Circuit	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Contact Finish	Height Above Board	Height Above Board	Mounting Type
E-Switch KAP1102E	PC Pin	85 °C	-40 °C	24 VDC	Raised	Piano	2		2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	2000 Steps	0.261 "	6.63 mm	SPST	0.1 in	Full	2.54 mm	25 mA	Gold	10.2 mm	0.402 in	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
