Specification	0349851602

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polyamide (PA), Nylon, Syndiotatic Polystyrene (SPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

034985 Series

Part	Note	Mounting Type	Contact Type	Number of Positions	Features	Contact Termination	Insulation Material	Connector Type	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Color	Number of Rows	Pitch
Molex 0349851607	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Connector Position Assurance (CPA) Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2
Molex 0349851601	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Black	2
Molex 0349852329	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Connector Position Assurance (CPA) Sealed	Crimp	Glass Filled Syndiotactic Polystyrene (SPS)	Receptacle	Latch Holder			Gray	2	0.138 in
Molex 0349852160	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Connector Position Assurance (CPA) Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2
Molex 0349851849	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Connector Position Assurance (CPA) Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C		2

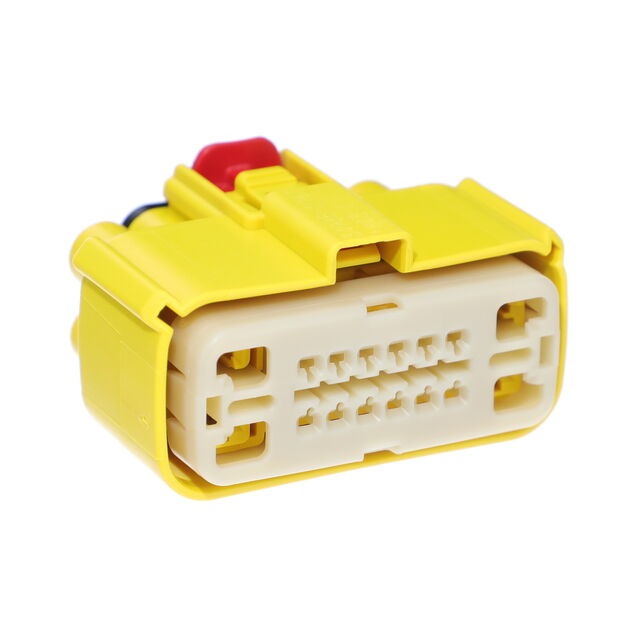

Molex 0349852161	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Connector Position Assurance (CPA) Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Yellow	2
Molex 0349852157	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2
Molex 0349852121	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2
Molex 0349852071	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2
Molex 0349851602	Contacts Not Included	Free Hanging (In-Line)	Female Socket	16	Sealed	Crimp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Receptacle	Latch Holder	125 °C	-40 °C	Gray	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MX150 Series

0349851602 | Datasheet
