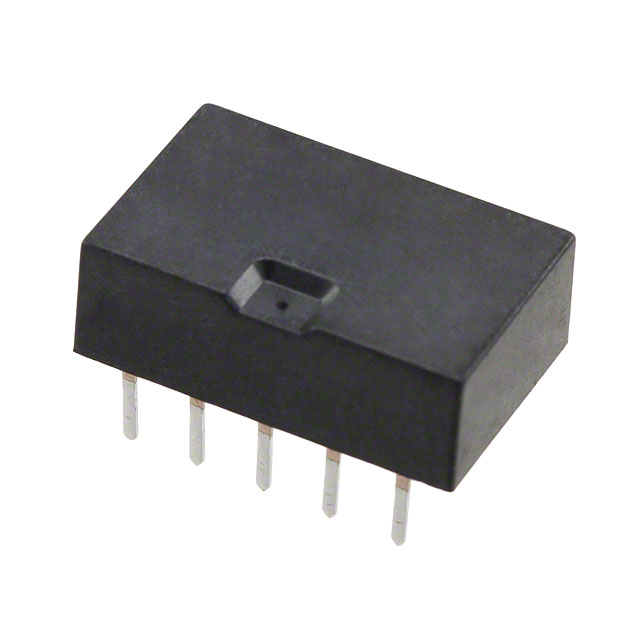

D3065

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 9V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 9V

Technical Specifications

Parameters and characteristics for this part

Specification	D3065

Coil Current	22.2 mA
Coil Resistance	405 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Through Hole
Must Operate Voltage	6.3 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	20 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

Part	Contact Material	Coil Type	Switching Voltage	Mounting Type	Coil Current	Coil Resistance	Contact Form	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Load - Max Switching	Coil Voltage	Relay Type	Must Operate Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays D3065	Gold (Au) Palladium (Pd) Ruthenium (Ru)	Latching Dual Coil	220 VDC 250 VAC	Through Hole	22.2 mA	405 Ohms	DPDT (2 Form C)	2 A	20 ms	85 °C	-40 °C	20 ms	440 W 500 VA	9 VDC	Telecom	6.3 VDC	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Telecom Relay DPDT (2 Form C) Through Hole
