31065103-S

Active

METZ CONNECT USA Inc.

SCREW TYPE, TERMINAL BLOCK, RIGH

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

SCREW TYPE, TERMINAL BLOCK, RIGH

Technical Specifications

Parameters and characteristics for this part

SCREW TYPE, TERMINAL BLOCK, RIGH

Part	Number of Levels	Voltage	Contact Material - Plating	Wire Termination	Screw Material - Plating	Pitch [x]	Pitch [x]	Clamp Material - Plating	Wire Gauge [Min]	Wire Gauge [Max]	Torque - Screw	Torque - Screw	Features	Current	Color	Mating Orientation	Mounting Type	Screw Thread	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]
METZ CONNECT USA Inc. 31065103-S	1	300 V	Copper Alloy - Tin Plated	Screw - Leaf Spring, Wire Guard	Zinc Plated	5 mm	0.197 in	Copper Alloy - Nickel Plated	12 AWG	22 AWG	6 Lb-In	0.68 Nm	Interlocking (Side)	20 A	Green	Horizontal with Board	Through Hole	M3	3	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

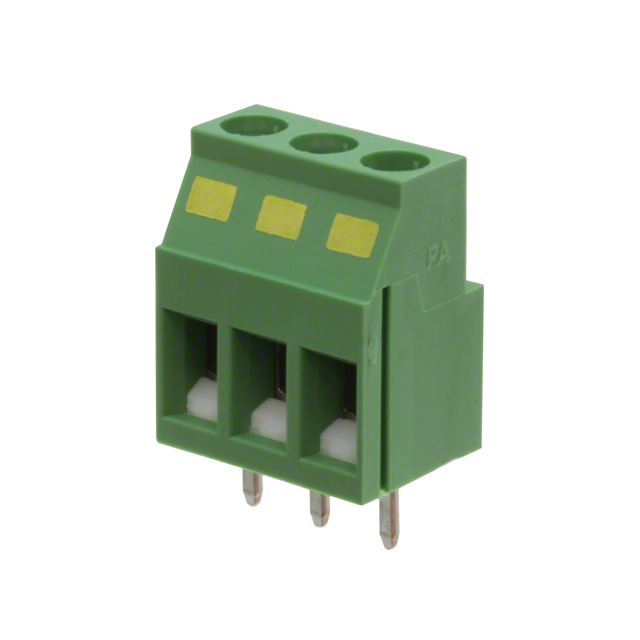

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
