YP1018KJ

Active

TE Connectivity Passive Product

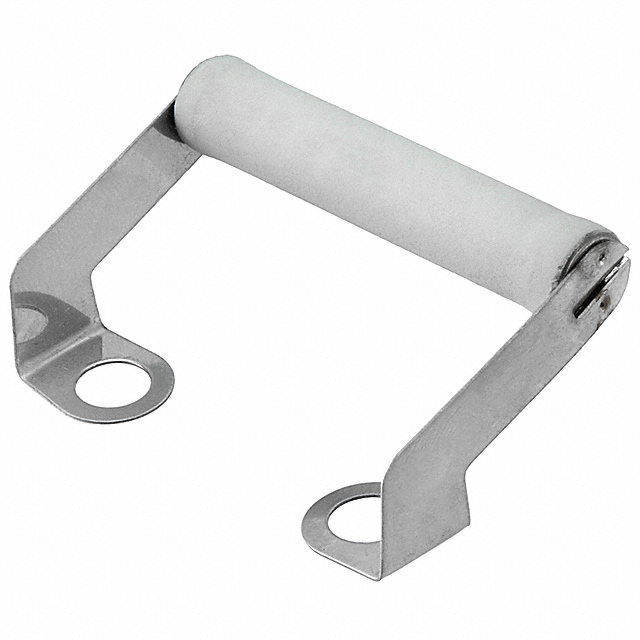

RES CAP BLEEDER 18K OHM 5% 10W

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES CAP BLEEDER 18K OHM 5% 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

RES CAP BLEEDER 47K OHM 5% 10W

Part	Composition	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Resistance	Mounting Type	Mounting Type	Temperature Coefficient	Tolerance	Power (Watts)
TE Connectivity Passive Product YP1047KJ	Wirewound	Capacitor Discharge	350 °C	-55 °C	Bleeder, Capacitor	47 kOhms	31.8 mm	Capacitor	100 ppm/°C	5 %	10 W
TE Connectivity Passive Product YP1018KJ	Wirewound	Capacitor Discharge	350 °C	-55 °C	Bleeder, Capacitor	18 kOhms	31.8 mm	Capacitor	100 ppm/°C	5 %	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.67

General part information

18 kOhms ±5% 10W Bleeder, Capacitor Specialized Resistor Wirewound ±100ppm/°C Capacitor, 31.8mm Pitch

Technical documentation and resources
