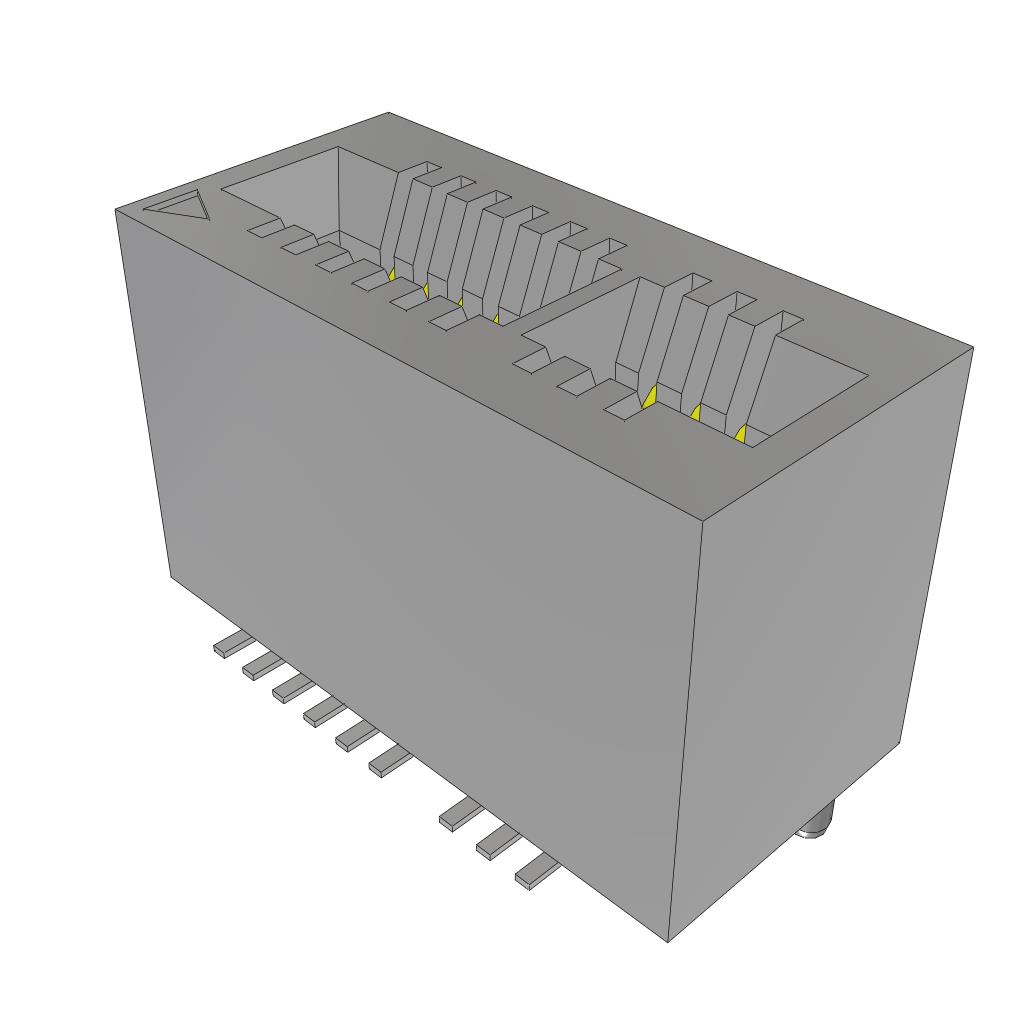

MEC1-110-02-F-D-A
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 20POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
MEC1-110-02-F-D-A
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 20POS 0.039
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEC1-110-02-F-D-A |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Contact Material | Beryllium Copper |
| Contact Type | Loop Bellows |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Dual |
| Termination | Solder |
MEC1-110 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Rows | Mounting Type | Material - Insulation | Gender | Card Thickness | Card Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Contact Finish | Number of Positions | Card Type | Contact Type | Color | Features | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 30 Áin | 0.76 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 10 Áin | 0.25 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 10 Áin | 0.25 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide | 0.039 in | 1 mm |
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 10 Áin | 0.25 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | 0.039 in | 1 mm | |
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | 0.039 in | 1 mm | |
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide Pick and Place | 0.039 in | 1 mm |
Samtec Inc. | 3 Áin | 0.076 Ám | Dual | 2 | Surface Mount | Liquid Crystal Polymer (LCP) | Female | 0.062 in | 1.57 mm | -55 °C | 125 °C | Beryllium Copper | Solder | Gold | 20 | Non Specified - Dual Edge | Loop Bellows | Black | Board Guide | 0.039 in | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.88 | |
Description
General part information
MEC1-110 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
