2304-6121-TG

Active

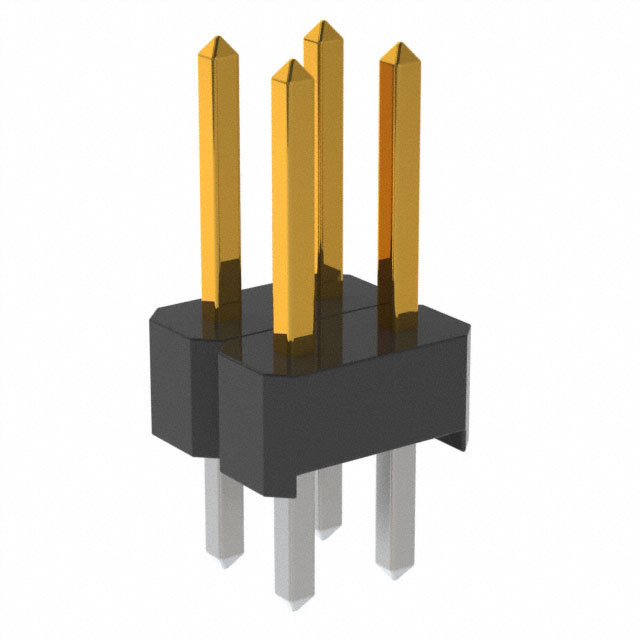

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2304-6121-TG

Active

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2304-6121-TG	2304 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating	-	8.08 mm
Contact Length - Mating [x]	0.23 in	0.23 - 0.318 "
Contact Length - Post	-	2.79 mm
Contact Length - Post [x]	0.12 in	0.11 - 0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 - 6.14 mm
Insulation Height	-	0.242 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.45 "	0.45 - 0.538 "
Overall Contact Length	11.43 mm	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2304 Series

CONN HEADER R/A 4POS 2.54MM

Part	Mounting Type	Contact Shape	Number of Positions	Termination	Number of Rows	Material Flammability Rating	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height [custom]	Current Rating (Amps)	Number of Positions Loaded	Style	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating
3M 2304-5221-TG	Through Hole, Right Angle	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.318 "	8.08 mm	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	6.14 mm	0.242 in	3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.11 in	2.79 mm
3M 2304-6221-TG	Through Hole	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.318 "	8.08 mm	2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.538 "	13.67 mm
3M 2304-6211-TG	Through Hole	Square	4	Solder	1	UL94 V-0	Copper Alloy	0.318 "	8.08 mm			Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.538 "	13.67 mm
3M 2304-5111-TG	Through Hole, Right Angle	Square	4	Solder	1	UL94 V-0	Copper Alloy	0.23 in				Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm			5.84 mm
3M 2304-6121-TG	Through Hole	Square	4	Solder	2	UL94 V-0	Copper Alloy	0.23 in		2.54 mm	0.1 in	Push-Pull	105 ░C	-55 °C	0.1 in	2.54 mm	Male Pin	Tin-Lead	Header	10 çin	0.25 çm	Black	2.54 mm		3 A	All	Board to Board, Cable	Unshrouded	Gold	2.54 µm	100 µin	0.12 in		0.1 in	3.05 mm	0.45 "	11.43 mm	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2304 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
