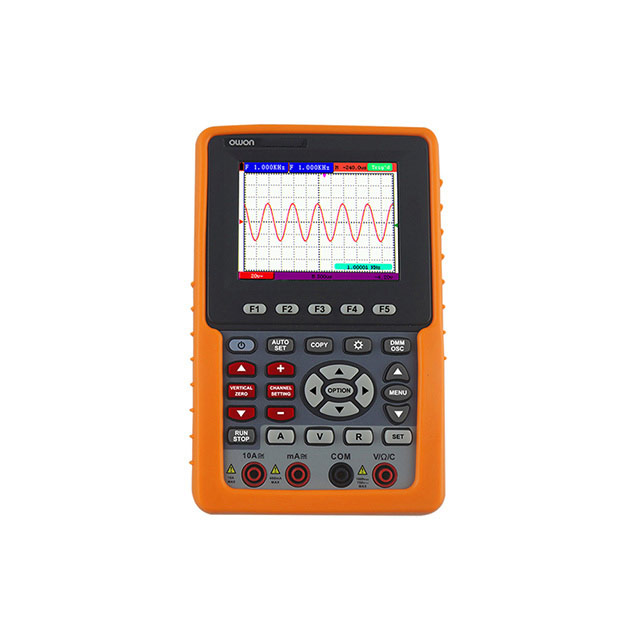

HDS1021M-N

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 1 CH 500MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 1 CH 500MS/S

Technical Specifications

Parameters and characteristics for this part

Specification	HDS1021M-N

Channels	1
Display Type	LCD - Color
Includes	Adapter, Probe, Manual, USB Cable, Test Lead, Power Cord
Input Impedance	1 MΩ, 18 pF
Interface	USB, RS232
Memory Size	24 kpts
Probe Type	Passive 10:1 (1)
Rise Time (Typ)	17.5 ns
Sampling Rate (Per Second)	500 M
Type	Handheld
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

O-SCOPE 20MHZ 1 CH 500MS/S

Part	Type	Sampling Rate (Per Second)	Voltage - Input (Max) [Max]	Input Impedance	Rise Time (Typ)	Probe Type	Memory Size	Interface	Includes	Channels	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Owon Technology Lilliput Electronics (USA) Inc HDS1021M-N	Handheld	500 M	400 V	1 MΩ, 18 pF	17.5 ns	Passive 10:1 (1)	24 kpts	RS232, USB	Adapter, Manual, Power Cord, Probe, Test Lead, USB Cable	1	LCD - Color	100 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 269.00

General part information

20 MHz Handheld Oscilloscopes RS232, USB Interface LCD - Color Display 1 Channel CAT II 400V Record, Playback

Technical documentation and resources

No documents available
