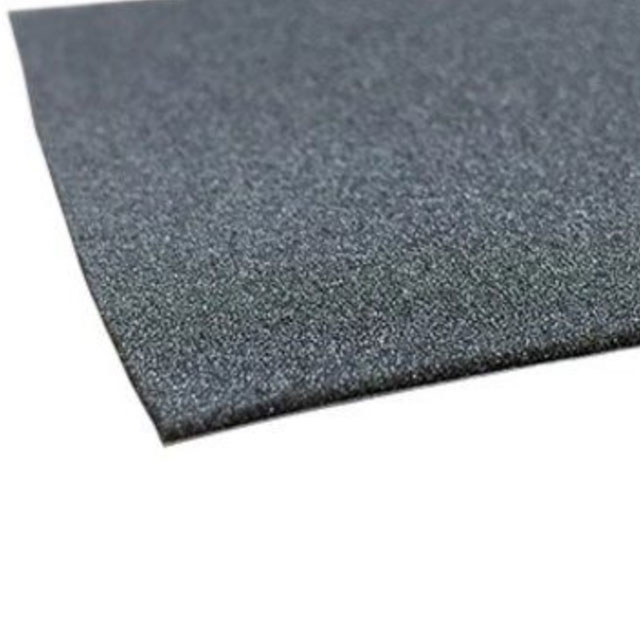

MSG6100F-1-5

Active

3M (TC)

RF EMI ABSORB/SHLD SHEET 5MX1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MSG6100F-1-5

Active

3M (TC)

RF EMI ABSORB/SHLD SHEET 5MX1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSG6100F-1-5

Length [x]	5 m
Length [x]	16.404 ft
Material	Nickel-Copper (NI/CU) Fabric
Shape	Tape
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	1 mm
Thickness - Overall [z]	0.039 in
Type	Absorbing/Shielding Sheet
Width	25.4 mm
Width [x]	1 in

MSG6100F Series

Part	Shelf Life	Length	Length	Shape	Thickness - Overall [z]	Thickness - Overall	Width [x]	Width [x]	Material	Type	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length [x]	Length [x]	Width
3M (TC) MSG6100FSQ-2(25)	12 Months	50.8 mm	2 in	Square	0.039 in	1 mm	2 in	50.8 mm	Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C
3M (TC) MSG6100F-2-5	12 Months			Tape	0.039 in	1 mm	2 in	50.8 mm	Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C	5 m	16.404 ft
3M (TC) MSG6100F-0.5-5	12 Months			Tape	0.039 in	1 mm			Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C	5 m	16.404 ft
3M (TC) MSG6100FSQ-12	12 Months			Square	0.039 in	1 mm	12 in		Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C			304.8 mm
3M (TC) MSG6100FSQ-0.5(100)	12 Months	12.7 mm	0.5 in	Square	0.039 in	1 mm			Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C
3M (TC) MSG6100F-4-5	12 Months			Tape	0.039 in	1 mm	4 "	101.6 mm	Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C	5 m	16.404 ft
3M (TC) MSG6100F-1-5	12 Months			Tape	0.039 in	1 mm	1 in		Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C	5 m	16.404 ft	25.4 mm
3M (TC) MSG6100FSQ-1(50)	12 Months			Square	0.039 in	1 mm	1 in		Nickel-Copper (NI/CU) Fabric	Absorbing/Shielding Sheet	Date of Manufacture	70 °F	21 °C	25.4 mm	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 148.67
		10	$ 141.64

Description

General part information

MSG6100F Series

RF EMI Absorbing/Shielding Sheet MSG6000F Nickel-Copper (NI/CU) Fabric Acrylic, Conductive, Pressure Sensitive Adhesive (PSA) 1.000" (25.40mm) X 16.404' (5.00m) X 0.039" (1.00mm)
