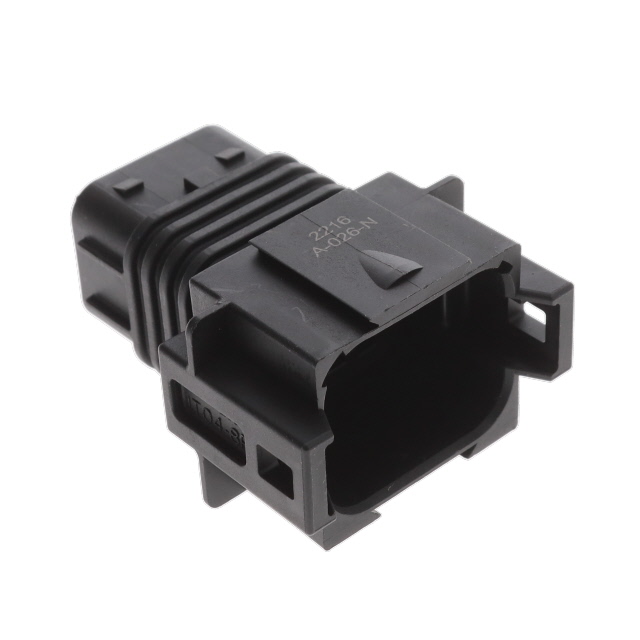

IT04-8PA-026-N

Active

ITT Cannon, LLC

CONN RCPT HSG 8POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-8PA-026-N

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Connector Type	Number of Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Features	Fastening Type	Number of Positions	Insulation Material	Contact Type
ITT Cannon, LLC IT04-8PA-024	Receptacle	2	Black	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-020-N	Receptacle	2	Gray	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-022-N	Receptacle	2	Gray	-55 °C	125 °C	Crimp	Free Hanging (In-Line)		Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-026	Receptacle	2	Black	-55 °C	125 °C	Crimp	Free Hanging (In-Line)		Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-024-N	Receptacle	2	Black	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-022	Receptacle	2	Gray	-55 °C	125 °C	Crimp	Free Hanging (In-Line)		Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin
ITT Cannon, LLC IT04-8PA-026-N	Receptacle	2	Black	-55 °C	125 °C	Crimp	Free Hanging (In-Line)		Latch Holder	8	Glass Filled Nylon Polyamide (PA)	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Receptacle Black
