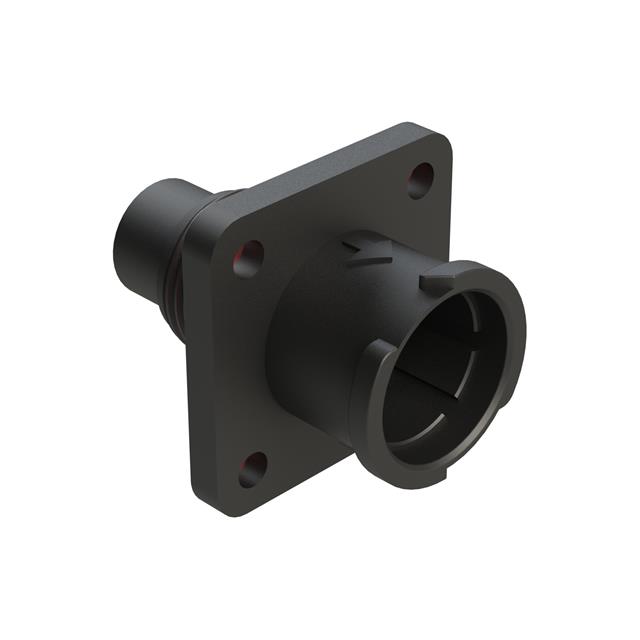

FLS010N2P03-PM
ActiveAmphenol Sine Systems Corp
4 (2+2) POSITION SQUARE FLANGE R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLS010N2P03-PM
ActiveAmphenol Sine Systems Corp
4 (2+2) POSITION SQUARE FLANGE R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLS010N2P03-PM |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 (2), 16 (2) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP69K, IP68, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 10-4 |
| Shielding | Unshielded |
| Type | For Male Pins |
FLS010N Series
| Part | Housing Color | Number of Positions | Primary Material | Connector Type | Ingress Protection | Contact Type | Shielding | Type | Shell Size - Insert | Material Flammability Rating | Orientation | Contact Size | Mounting Feature | Fastening Type | Note | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Contact Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Black | 6 | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Male Pins | 10-3W3 | UL94 V-0 | N | 16 (3) 20 (3) | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | ||
Amphenol Sine Systems Corp | Black | 4 | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Male Pins | 10-4 | UL94 V-0 | N | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | 16 | ||
Amphenol Sine Systems Corp | Black | 6 | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Female Sockets | 10-6 | UL94 V-0 | N | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | 20 | Cap (Cover) | |
Amphenol Sine Systems Corp | Black | 6 | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Male Pins | 10-6 | UL94 V-0 | N | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | 20 | ||
Amphenol Sine Systems Corp | Black | 4 | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Male Pins | 10-4 | UL94 V-0 | N | 16 (2) 20 (2) | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | ||
Amphenol Sine Systems Corp | Black | Plastic | Receptacle Housing | IP67 IP68 IP69K | Crimp | Unshielded | For Female Sockets | 10-3 | UL94 V-0 | N | Flange | Bayonet Lock | Contacts Not Included | Thermoplastic | 125 °C | -40 °C | Circular | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 6.86 | |
Description
General part information
FLS010N Series
4 Position Circular Connector Receptacle Housing Panel Mount
