85221 368500

Active

Belden Inc.

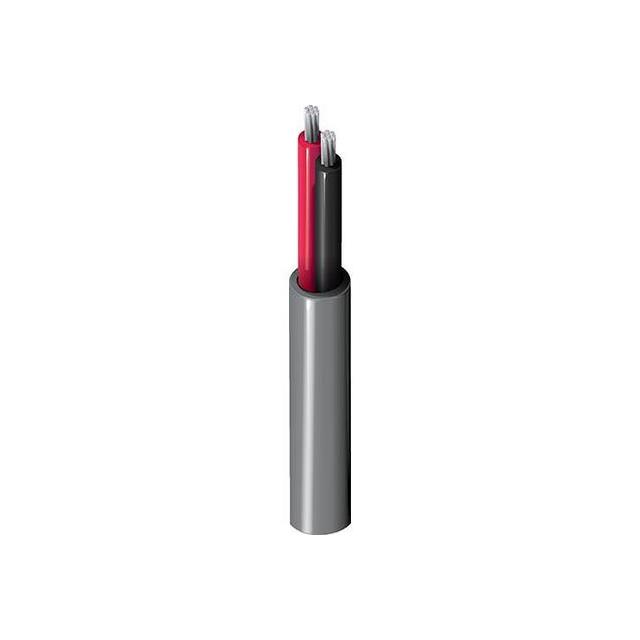

CABLE 2COND 16AWG CLEAR

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	85221 368500

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Tetrafluoroethylene (ETFE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Clear
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Usage	Wire Gauge
Belden Inc. 85221 368500	2	500 '	152.4 m	0.02 in	0.508 mm	Clear	19 Strands	29 AWG	Ethylene Tetrafluoroethylene (ETFE)	150 °C	-60 °C	Multi-Conductor	5.46 mm	0.215 in	Ethylene Tetrafluoroethylene (ETFE)	Copper Tinned	Audio Control Instrumentation	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 14.65

General part information

2 Conductor Multi-Conductor Cable Clear 16 AWG 500.0' (152.4m)
