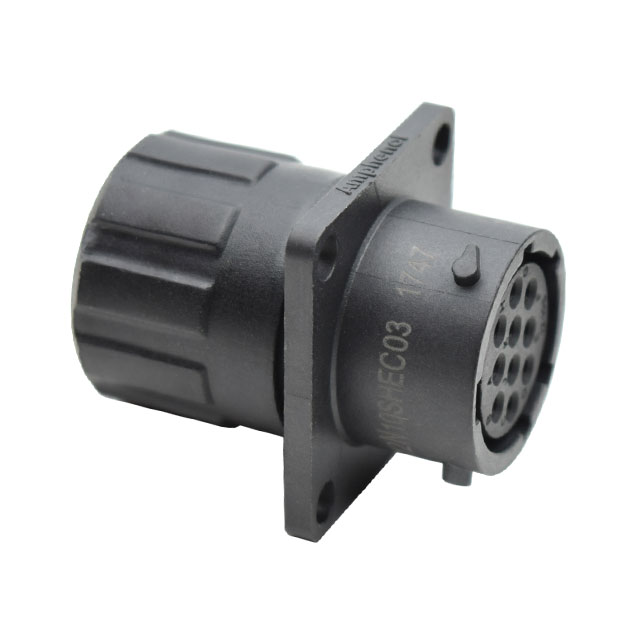

Specification	RTS012N10SHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	10 mm
Shielding	Unshielded
Type	For Female Sockets

RTS012 Series

Part	Orientation	Shell Material	Material Flammability Rating	Mounting Type	Shielding	Contact Size	Mounting Feature	Fastening Type	Connector Type	Number of Positions	Shell Size - Insert Length	Shell Size - Insert Width	Type	Contact Type	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Includes Total Count	Includes	Note	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Features	Position Types
McGill Microwave Systems RTS012N8S03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	16 S	Flange	Bayonet Lock	Receptacle Housing	8	12 mm	8 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS012N10SHEC03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	20	Flange	Bayonet Lock	Receptacle Housing	10	12 mm	10 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black			Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic	Backshell

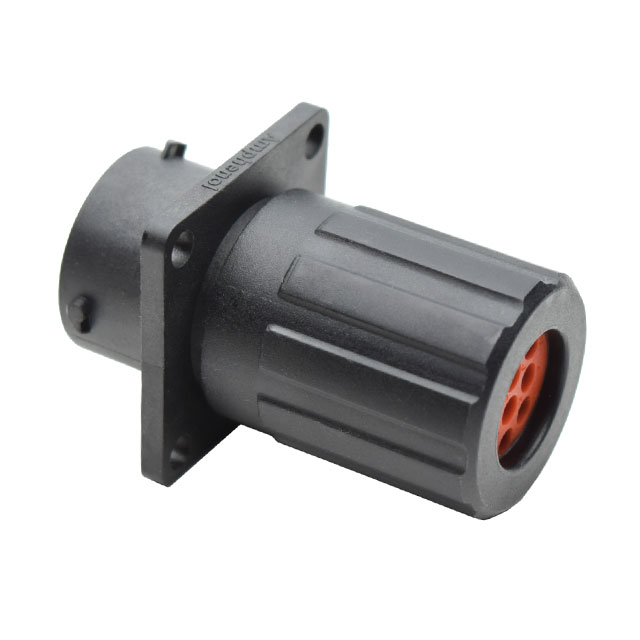

McGill Microwave Systems RTS012N10PHEC03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	20	Flange	Bayonet Lock	Receptacle Housing	10	12 mm	10 mm	For Male Pins	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black			Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic	Backshell
McGill Microwave Systems RTS012N10P03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	20	Flange	Bayonet Lock	Receptacle Housing	10	12 mm	10 mm	For Male Pins	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic

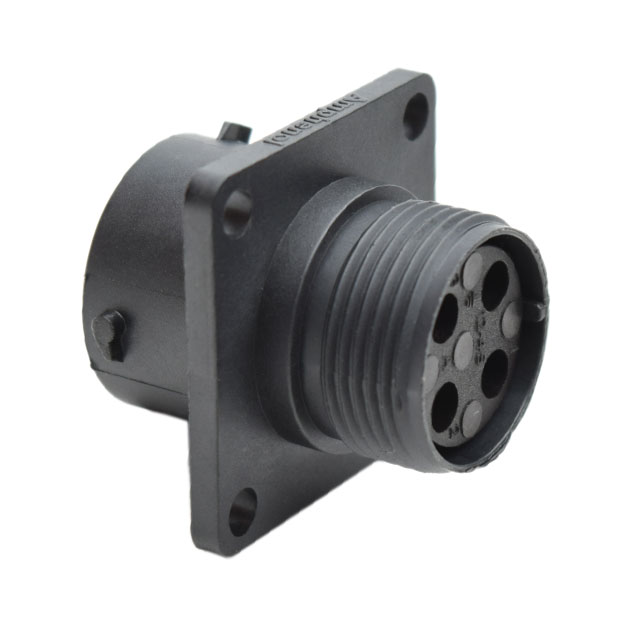

McGill Microwave Systems RTS012N4S03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	16 S	Flange	Bayonet Lock	Receptacle Housing	4	12 mm	4 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic		PE

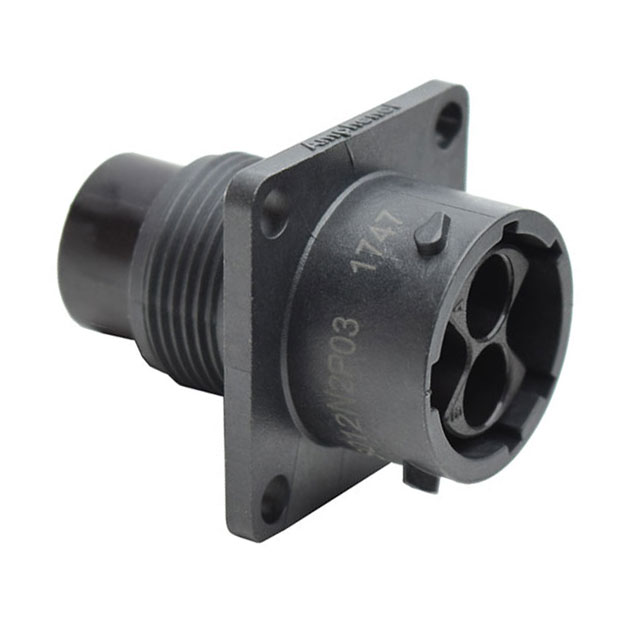

McGill Microwave Systems RTS012N2P03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	2.5 mm 20	Flange	Bayonet Lock	Receptacle Housing	4	12 mm	2 mm	For Male Pins	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic

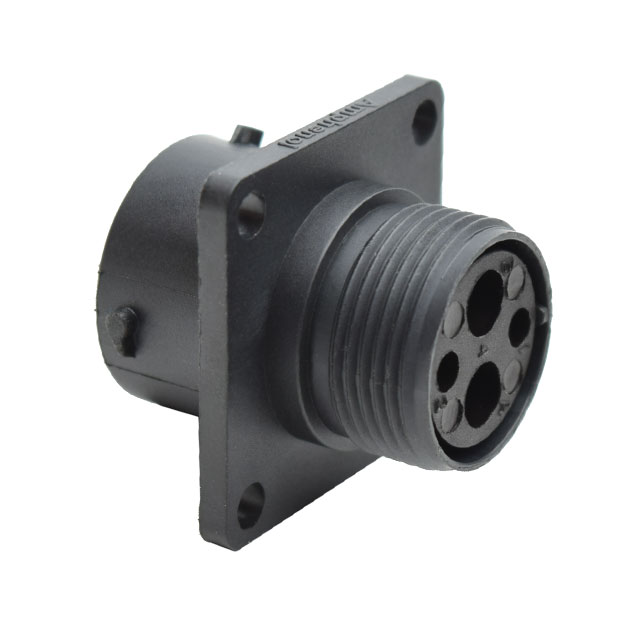

McGill Microwave Systems RTS012N2S03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	2.5 mm 20	Flange	Bayonet Lock	Receptacle Housing	4	12 mm	2 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic

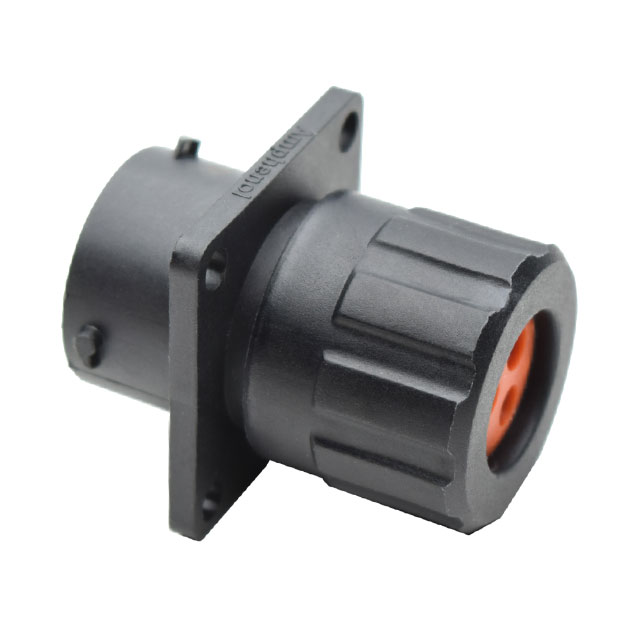

McGill Microwave Systems RTS012N3SHEC03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	16 S	Flange	Bayonet Lock	Receptacle Housing	3	12 mm	3 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black			Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic	Backshell
McGill Microwave Systems RTS012N3S03	N (Normal)	Thermoplastic	UL94 V-0	Panel Mount	Unshielded	16 S	Flange	Bayonet Lock	Receptacle Housing	3	12 mm	3 mm	For Female Sockets	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	2 pcs	Connector Gasket	Contacts Not Included	Circular	125 °C	-40 °C	Thermoplastic
