12PA5-R

Active

Honeywell Sensing and Productivity Solutions

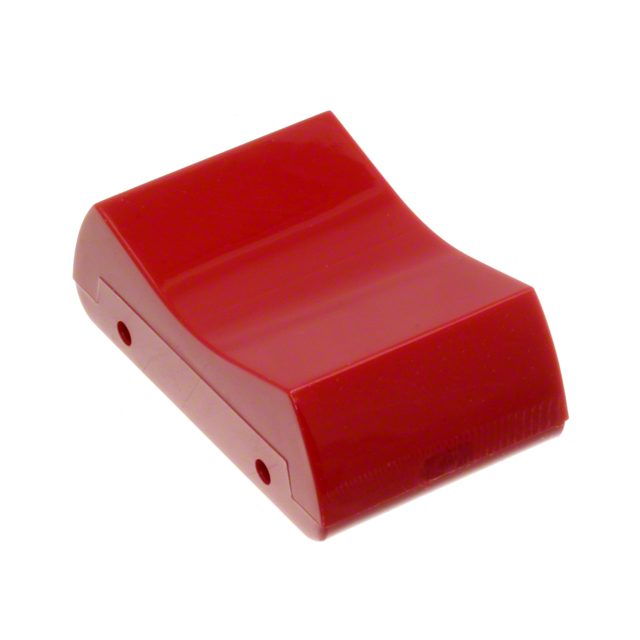

TP ACTUATOR BUTTON RED

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

TP ACTUATOR BUTTON RED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.87

General part information

Rectangular, Concave Rocker Switch Cap Red Snap Fit

Technical documentation and resources

Specification	12PA5-R	12PA5 Series

Color	Red	Yellow, Red, Black
For Use With/Related Products	TP Series	TP Series
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Snap Fit	Snap Fit
Shape	Concave, Rectangular	Concave, Rectangular
Size [x]	37.1 mm	37.1 mm
Size [y]	22.1 mm	22.1 mm
Switch Type	Rocker	Rocker

Part	For Use With/Related Products	Size [y]	Size [x]	Illumination	Mounting Type	Switch Type	Color	Shape
Honeywell Sensing and Productivity Solutions 12PA5-Y	TP Series	22.1 mm	37.1 mm	Non-Illuminated	Snap Fit	Rocker	Yellow	Concave, Rectangular
Honeywell Sensing and Productivity Solutions 12PA5-R	TP Series	22.1 mm	37.1 mm	Non-Illuminated	Snap Fit	Rocker	Red	Concave, Rectangular
Honeywell Sensing and Productivity Solutions 12PA5-BK	TP Series	22.1 mm	37.1 mm	Non-Illuminated	Snap Fit	Rocker	Black	Concave, Rectangular
