TV06A9V0J-HF

Active

Comchip Technology

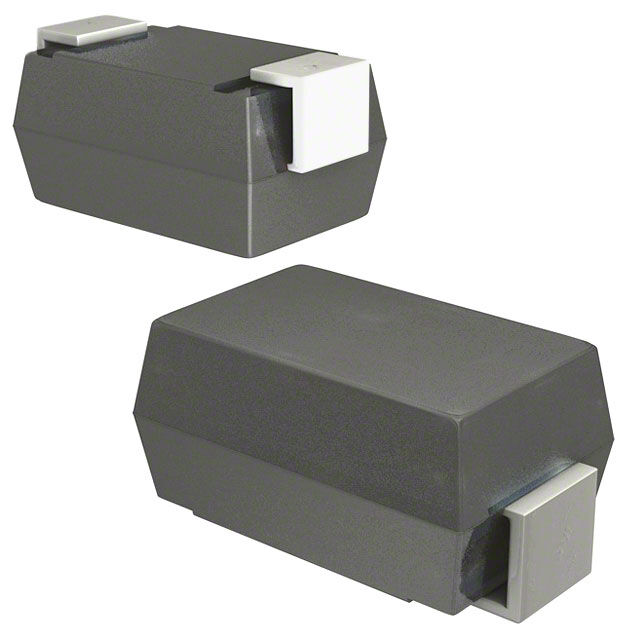

TVS DIODE 9VWM 15.4VC DO214AC

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 9VWM 15.4VC DO214AC

Technical Specifications

Parameters and characteristics for this part

Specification	TV06A9V0J-HF

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	39 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	DO-214AC, SMA
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	DO-214AC (SMA)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	10 V
Voltage - Clamping (Max) @ Ipp [Max]	15.4 V
Voltage - Reverse Standoff (Typ)	9 V

TVS DIODE 9VWM 15.4VC DO214AC

Part	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Supplier Device Package	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Applications
Comchip Technology TV06A9V0J-HF		-55 °C	150 °C	Zener	Surface Mount	1	9 V	10 V	15.4 V	DO-214AC, SMA	DO-214AC (SMA)	600 W	39 A	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15.4V Clamp 39A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
