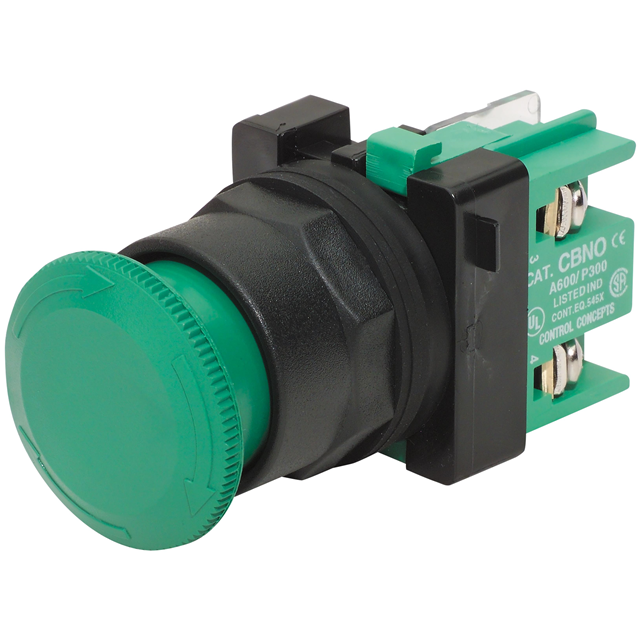

PTR-TMCRD-NO/DB

Active

c3controls

SWITCH ESTOP TWIST RESET 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH ESTOP TWIST RESET 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	PTR-TMCRD-NO/DB

Circuit	SPST-NO
Current Rating (Amps)	10 A, 5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30.2 mm
Reset Operation	Twist
Switch Function	Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

SWITCH ESTOP TWIST RESET 10A 72V

Part	Current Rating (Amps)	Voltage Rating - DC	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Circuit	Reset Operation	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function
c3controls PTR-TMCRD-NO/DB	5 A, 10 A	28 V	IP65 - Dust Tight, Water Resistant	-40 °C	55 °C	Panel Mount, Front	72 V	SPST-NO	Twist	30.2 mm	Screw Terminal	Off-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.34

General part information

SWITCH ESTOP TWIST RESET 10A 72V

Technical documentation and resources
