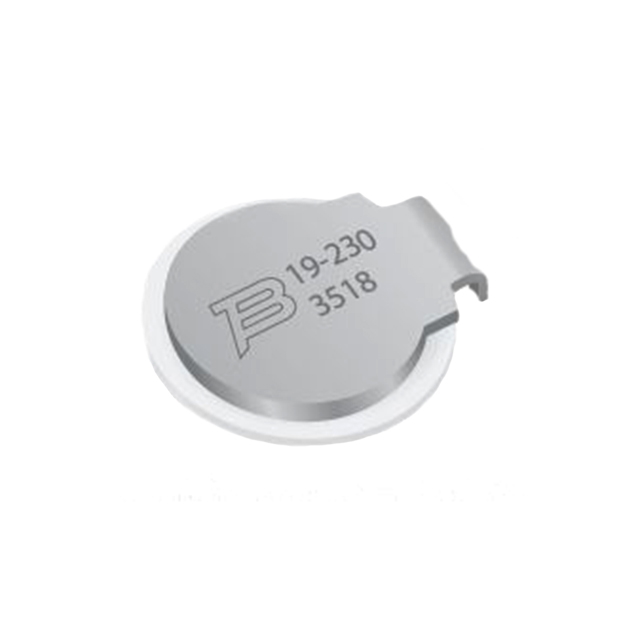

2019-15-SMH-RPLF

Active

Bourns Inc.

GDT 150V 20KA 2 POLE SMD HORIZ

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 150V 20KA 2 POLE SMD HORIZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.95

General part information

Gas Discharge Tube 150 V 20000A (20kA) ±20% 2 Pole Surface Mount Horizontal

Technical documentation and resources

Specification	2019-15-SMH-RPLF	2019 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	20 kA	20 kA
Impulse Discharge Current (8/20µs)	20000 A	20000 A
Mounting Type	Surface Mount Horizontal	Surface Mount Horizontal
Number of Poles	2	2
Package / Case	Tabbed SMD, Disc	Tabbed SMD, Disc
Package / Case [diameter]	10 mm	10 mm
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	150 V	150 - 230 V

Part	Voltage - DC Spark Over (Nom)	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type	Package / Case	Package / Case [diameter]	Tolerance	Number of Poles
Bourns Inc. 2019-15-SMH-RPLF	150 V	20 kA	20000 A	Surface Mount Horizontal	Disc, Tabbed SMD	10 mm	20 %	2
Bourns Inc. 2019-23-SMH-RPLF	230 V	20 kA	20000 A	Surface Mount Horizontal	Disc, Tabbed SMD	10 mm	20 %	2
Bourns Inc. 2019-23-SMH-LF	230 V	20 kA	20000 A	Surface Mount Horizontal	Disc, Tabbed SMD	10 mm	20 %	2
