1241.1606.23
ActiveSCHURTER Inc.

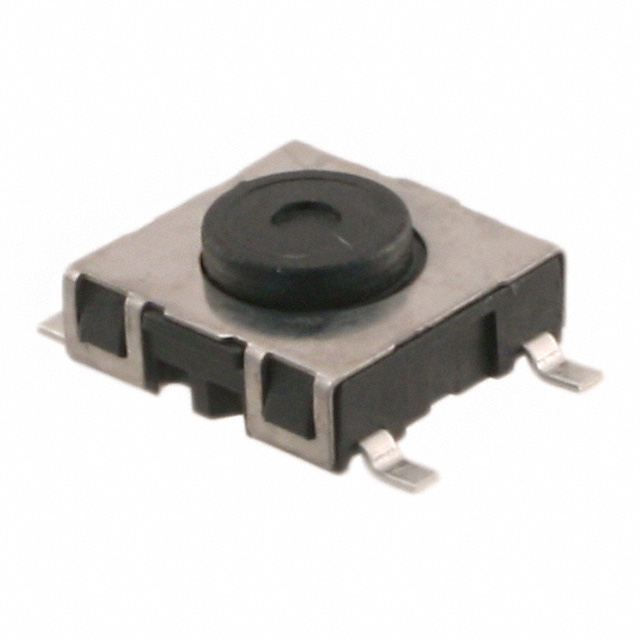

SWITCH TACTILE SPST-NO 0.05A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1606.23
ActiveSCHURTER Inc.
SWITCH TACTILE SPST-NO 0.05A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1606.23 | 1241.160 Series |
|---|---|---|
| Actuator Height off PCB, Vertical | 4.95 mm | 4.95 mm |
| Actuator Height off PCB, Vertical | - | 4.7 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 42 VDC, 0.05 A | 0.05 - 42 VDC |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP40, IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Force | 220 gf | 180 - 220 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 11.4 mm | 11.4 mm |
| Outline [y] | 11.4 mm | 11.4 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.35 mm | 0.35 mm |
| Termination Style | Gull Wing | J Lead, Gull Wing |
1241.160 Series
SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX
| Part | Mechanical Life | Operating Force | Actuator Material | Actuator Orientation | Ingress Protection | Actuator Height off PCB, Vertical [z] | Switch Function | Actuator Type | Features | Contact Rating @ Voltage | Illumination | Circuit | Termination Style | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Travel | Mounting Type | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1601.11 | 1000000 Cycles | 180 gf | Polyphenylene Sulfide (PPS) | Top Actuated | IP40 | 4.7 mm | Off-Mom | Standard | Tactile Feedback | 0.05 A, 42 VDC | Non-Illuminated | SPST-NO | J Lead | 11.4 mm | 11.4 mm | 85 °C | -40 °C | 0.35 mm | Surface Mount | |
SCHURTER Inc. 1241.1607.11 | 1000000 Cycles | 220 gf | Polyphenylene Sulfide (PPS) | Top Actuated | IP67 - Dust Tight, Waterproof | Off-Mom | Standard | Tactile Feedback | 0.05 A, 42 VDC | Non-Illuminated | SPST-NO | J Lead | 11.4 mm | 11.4 mm | 85 °C | -40 °C | 0.35 mm | Surface Mount | 4.95 mm | |
SCHURTER Inc. 1241.1606.23 | 1000000 Cycles | 220 gf | Polyphenylene Sulfide (PPS) | Top Actuated | IP67 - Dust Tight, Waterproof | Off-Mom | Standard | Tactile Feedback | 0.05 A, 42 VDC | Non-Illuminated | SPST-NO | Gull Wing | 11.4 mm | 11.4 mm | 85 °C | -40 °C | 0.35 mm | Surface Mount | 4.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| 50 | $ 2.61 | |||
| 100 | $ 2.17 | |||
| Digi-Reel® | 1 | $ 3.51 | ||
| 50 | $ 2.61 | |||
| 100 | $ 2.17 | |||
| Tape & Reel (TR) | 700 | $ 2.17 | ||
Description
General part information
1241.160 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
