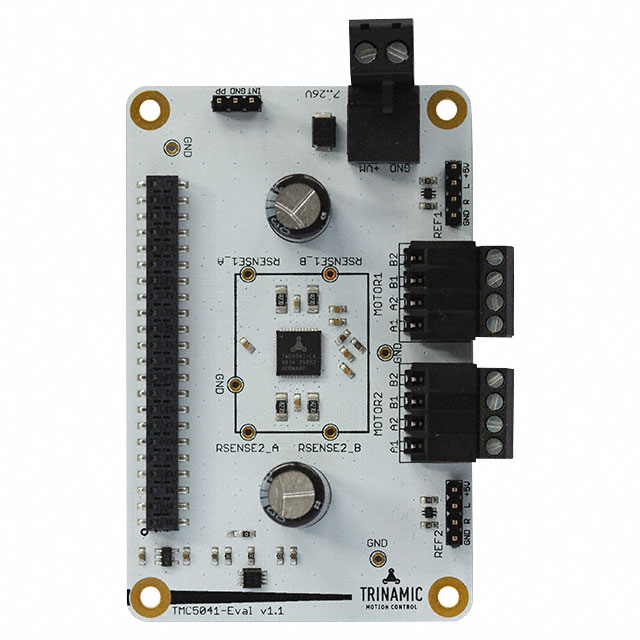

TMC5041-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC5041
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC5041-EVAL | TMC5041 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.1 A |
| Embedded | False | False, True |
| Embedded | - | MCU, 32-Bit |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | SPI |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (8), Half Bridge (2) |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-QFN (7x7) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC5041 | TMC5041 |
| Voltage - Load | - | 5.5 V |
| Voltage - Load | - | 26 V |
| Voltage - Supply | - | 26 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.86 | |
TMC5041 Series
EVAL BOARD FOR TMC5041
| Part | Supplied Contents | Contents | Embedded | Utilized IC / Part | Type | Step Resolution [Max] | Step Resolution [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Applications | Motor Type - Stepper | Output Configuration | Current - Output | Function | Interface | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Embedded | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC5041-EVAL | Board(s) | Board(s) | TMC5041 | Power Management | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5041-LA-T | 1 | 0.00390625 | 5.5 V | 26 V | Surface Mount | 48-QFN (7x7) | -40 °C | 125 ¯C | Power MOSFET | General Purpose | Bipolar | Half Bridge (8) | 1.1 A | Driver - Fully Integrated, Control and Power Stage | SPI | 48-VFQFN Exposed Pad | 26 V | 5.5 V | ||||||||
Analog Devices Inc./Maxim Integrated TMC5041-LA | 1 | 0.00390625 | 5.5 V | 26 V | Surface Mount | 48-QFN (7x7) | -40 °C | 125 ¯C | Power MOSFET | General Purpose | Bipolar | Half Bridge (2) | 1.1 A | Driver - Fully Integrated, Control and Power Stage | SPI | 48-VFQFN Exposed Pad | 26 V | 5.5 V | ||||||||
Analog Devices Inc./Maxim Integrated TMC5041-EVAL-KIT | Board(s) | TMC5041 | Power Management | 32-Bit, MCU | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5041-BOB | Board(s) | Board(s) | TMC5041 | Power Management | SPI Interface(s) | Motors (Stepper) |
