XQERDO-00-0000-000000B02

Active

Cree LED

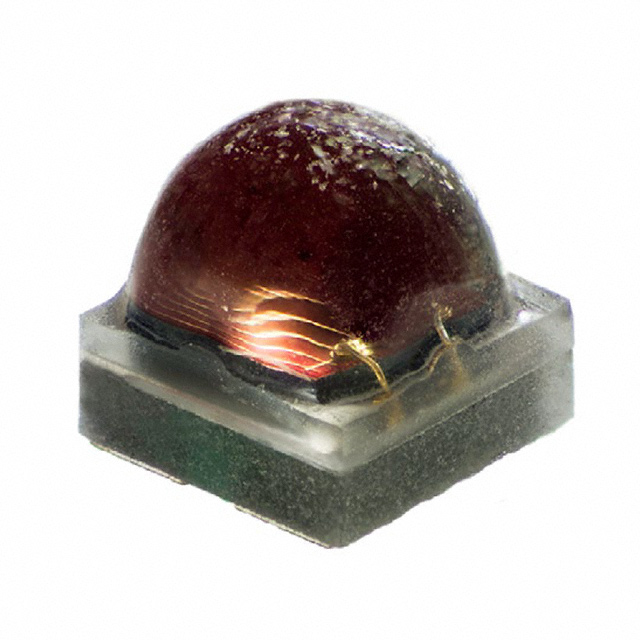

LED XLAMP XQE RED-ORG 613NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XQERDO-00-0000-000000B02

Active

Cree LED

LED XLAMP XQE RED-ORG 613NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.28
	Digi-Reel®	1	$ 2.28
	Tape & Reel (TR)	2000	$ 1.52

Description

General part information

XQERDO Series

LED Lighting Color XLamp® XQ-E Red-Orange 613nm (610nm ~ 615nm) 0606 (1616 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQERDO-00-0000-000000B02	XQERDO Series

Color	Red-Orange	Red-Orange
Current - Max [Max]	1 A	1 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max]	1.73 mm	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "	0.068 "
Lumens/Watt @ Current - Test	126 lm/W	92 - 126 lm/W
Luminous Flux @ Current/Temperature	97 lm	71 - 97 lm
Luminous Flux @ Current/Temperature	-	67 - 87 lm
Luminous Flux @ Current/Temperature	-	74 - 94 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	SMD
Viewing Angle	130 °	125 - 130 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 V
Wavelength	613 nm	613 - 618 nm
Wavelength [Max]	615 nm	615 - 620 nm
Wavelength [Min]	610 nm	610 nm

XQERDO Series

LED XLAMP XQE RED-ORG 613NM SMD

Part	Mounting Type	Color	Wavelength [Max]	Wavelength [Min]	Wavelength	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current - Max [Max]	Current - Test	Viewing Angle	Package / Case	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XQERDO-00-0000-000000B02	Surface Mount	Red-Orange	615 nm	610 nm	613 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	126 lm/W	97 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	130 °	0606, 1616 Metric
Cree LED XQERDO-02-0000-000000902	Surface Mount	Red-Orange	615 nm	610 nm	613 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	109 lm/W		2.2 V	0.068 "	1.73 mm	1 A	350 mA	130 °	0606, 1616 Metric	81 lm	87 lm
Cree LED XQERDO-H2-0000-000000703	Surface Mount	Red-Orange			618 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	92 lm/W	71 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	125 °	0606, 1616 Metric	67 lm	74 lm
Cree LED XQERDO-00-0000-000000A02	Surface Mount	Red-Orange	615 nm	610 nm	613 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	118 lm/W	91 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	130 °	0606, 1616 Metric	87 lm	94 lm
Cree LED XQERDO-02-0000-000000802	Surface Mount	Red-Orange	615 nm	610 nm	613 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	100 lm/W	77 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	130 °	0606, 1616 Metric	74 lm	81 lm
Cree LED XQERDO-00-0000-000000703	Surface Mount	Red-Orange			618 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	92 lm/W	71 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	130 °	0606, 1616 Metric	67 lm	74 lm
Cree LED XQERDO-H2-0000-000000801	Surface Mount	Red-Orange	620 nm	610 nm		SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	100 lm/W	77 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	125 °	0606, 1616 Metric	74 lm	81 lm
Cree LED XQERDO-H2-0000-000000702	Surface Mount	Red-Orange	615 nm	610 nm	613 nm	SMD	0.063 in	1.6 mm	0.063 in	1.6 mm	92 lm/W	71 lm	2.2 V	0.068 "	1.73 mm	1 A	350 mA	125 °	0606, 1616 Metric	67 lm	74 lm
