P50LE-100P1-R1-DA
Active3M
80000907438 P50LE-100P1-R1-DA=PAK50 CONNECTOR/ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P50LE-100P1-R1-DA | P50LE Series |
|---|---|---|
| Connector Type | Plug | Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Tin, Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Mating | - | 2 µin |
| Contact Finish Thickness - Mating | - | 0.051 µm |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Finish Thickness - Post | - | 2.03 µm |
| Contact Finish Thickness - Post | - | 80 µin |
| Contact Length - Post | 0.118 in | 0.118 in |
| Contact Length - Post | 3 mm | 3 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Current Rating (Amps) | 0.5 A | 0.5 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | - | Board Guide |
| Insulation Color | Brown | Brown |
| Insulation Height | 0.197 in | 0.197 in |
| Insulation Height | 5 mm | 5 mm |
| Insulation Height | - | 7 mm |
| Insulation Height | - | 0.276 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Polyphenylene Sulfide (PPS), Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Through Hole, Right Angle, Surface Mount |
| Number of Positions | 100 | 20 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
P50LE Series
CONN HEADER VERT 68POS 1.27MM
| Part | Fastening Type | Shrouding | Contact Material | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Mounting Type | Insulation Material | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Current Rating (Amps) | Material Flammability Rating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Contact Type | Number of Rows | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Tin | 2 µin | 0.051 µm | Solder | Through Hole | Polyphenylene Sulfide (PPS) | 68 | 2.03 µm | 80 µin | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | ||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole | Polyphenylene Sulfide (PPS), Glass Filled | 50 | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | ||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Tin | 2 µin | 0.051 µm | Solder | Through Hole, Right Angle | Polyphenylene Sulfide (PPS) | 50 | 2.03 µm | 80 µin | Gold | 0.5 A | UL94 V-0 | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | 7 mm | 0.276 in | ||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole, Right Angle | Polyphenylene Sulfide (PPS), Glass Filled | 30 | Gold | 0.5 A | UL94 V-0 | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | 7 mm | 0.276 in | ||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Surface Mount | Polyphenylene Sulfide (PPS), Glass Filled | 68 | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | Board Guide | |||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole | Polyphenylene Sulfide (PPS), Glass Filled | 100 | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | ||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole, Right Angle | Polyphenylene Sulfide (PPS), Glass Filled | 80 | Gold | 0.5 A | UL94 V-0 | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | 7 mm | 0.276 in | ||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole | Polyphenylene Sulfide (PPS), Glass Filled | 80 | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash | ||||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Tin | 2 µin | 0.051 µm | Solder | Through Hole, Right Angle | Polyphenylene Sulfide (PPS) | 80 | 2.03 µm | 80 µin | Gold | 0.5 A | UL94 V-0 | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | 7 mm | 0.276 in | ||||||
Latch Holder | Shrouded - 4 Wall | Phosphor Bronze | Brown | 0.05 in | 1.27 mm | Gold | Solder | Through Hole | Polyphenylene Sulfide (PPS), Glass Filled | 30 | Gold | 0.5 A | UL94 V-0 | 0.197 in | 5 mm | 0.118 in | 3 mm | Plug | 85 °C | -55 °C | Board to Cable/Wire | Center Strip Contact | 2 | All | Flash | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P50LE Series

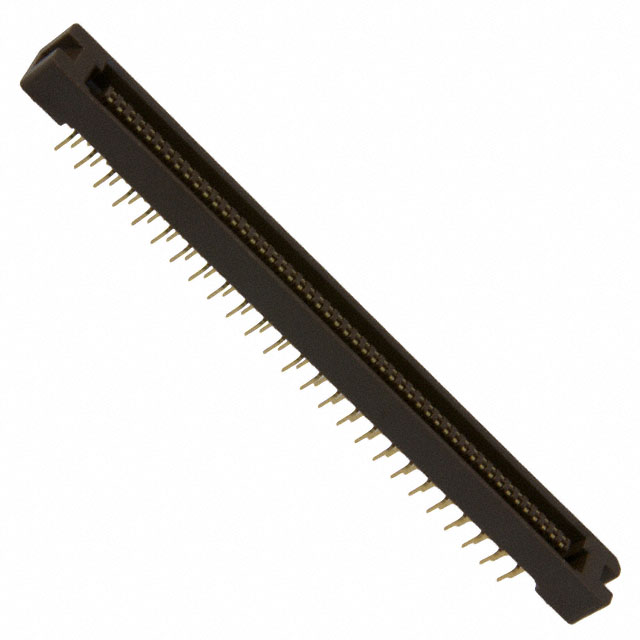

Connector Header Through Hole 100 position 0.050" (1.27mm)
