770966-2

Active

TE Connectivity AMP Connectors

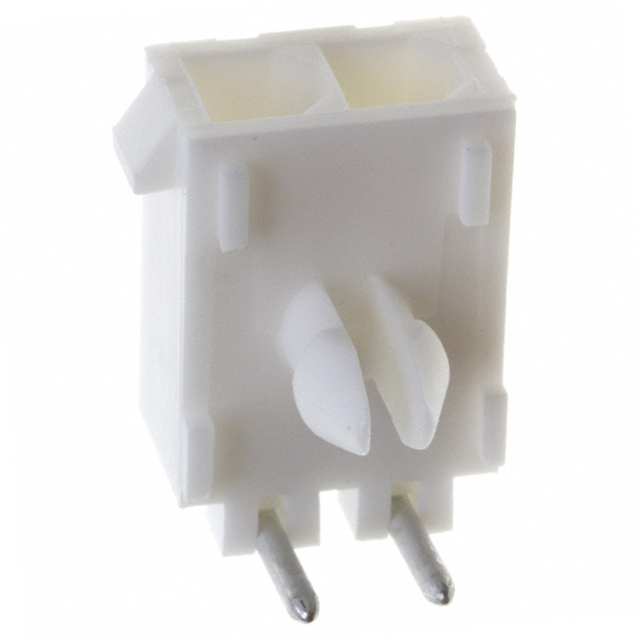

CONN HEADER R/A 2POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 2POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770966-2	770966 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	0.225 in	0.225 in
Insulation Height	5.72 mm	5.72 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER R/A 2POS 4.14MM

Part	Contact Material	Mounting Type	Contact Finish - Mating	Shrouding	Material Flammability Rating	Applications	Pitch - Mating	Pitch - Mating	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Insulation Color	Number of Positions Loaded	Termination	Number of Positions	Number of Rows	Contact Length - Post	Contact Length - Post	Style	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape
TE Connectivity AMP Connectors 1-770966-1	Brass	Through Hole, Right Angle	Gold	Shrouded - 4 Wall	UL94 V-0	General Purpose	4.14 mm	0.163 in	Header	600 VAC	-20 C	105 ░C	30 Áin	0.76 Ám	Male Pin	Tin	0.225 in	5.72 mm	Nylon, Polyamide (PA)	Locking Ramp	White	All	Solder	2	1	0.145 in	3.68 mm	Board to Cable/Wire	Varies by Wire Gauge	150 Áin	3.81 Ám	Circular
TE Connectivity AMP Connectors 770966-2	Brass	Through Hole, Right Angle	Gold	Shrouded - 4 Wall	UL94 V-0	General Purpose	4.14 mm	0.163 in	Header	600 VAC	-20 C	105 ░C	30 Áin	0.76 Ám	Male Pin	Tin-Lead	0.225 in	5.72 mm	Nylon, Polyamide (PA)	Locking Ramp	White	All	Solder	2	1	0.145 in	3.68 mm	Board to Cable/Wire	Varies by Wire Gauge	150 Áin	3.81 Ám	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 2 position 0.163" (4.14mm)
