Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2304-5221-TG | 2304 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 10 çin | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | - | 5.84 mm |
| Contact Length - Mating [x] | 0.318 " | 0.23 - 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post | - | 3.05 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 - 0.12 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 6.14 mm | 2.54 - 6.14 mm |
| Insulation Height | - | 0.1 in |
| Insulation Height [custom] | 0.242 in | 0.242 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole |
| Number of Positions | 4 | 4 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 1 - 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | - | 0.45 - 0.538 " |
| Overall Contact Length | - | 11.43 - 13.67 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
2304 Series
CONN HEADER R/A 4POS 2.54MM
| Part | Mounting Type | Contact Shape | Number of Positions | Termination | Number of Rows | Material Flammability Rating | Contact Material | Contact Length - Mating [x] | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Insulation Height | Insulation Height [custom] | Current Rating (Amps) | Number of Positions Loaded | Style | Shrouding | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post | Insulation Height | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Through Hole, Right Angle | Square | 4 | Solder | 2 | UL94 V-0 | Copper Alloy | 0.318 " | 8.08 mm | 2.54 mm | 0.1 in | Push-Pull | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Header | 10 çin | 0.25 çm | Black | 6.14 mm | 0.242 in | 3 A | All | Board to Board, Cable | Unshrouded | Gold | 2.54 µm | 100 µin | 0.11 in | 2.79 mm | ||||||
Through Hole | Square | 4 | Solder | 2 | UL94 V-0 | Copper Alloy | 0.318 " | 8.08 mm | 2.54 mm | 0.1 in | Push-Pull | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Header | 10 çin | 0.25 çm | Black | 2.54 mm | 3 A | All | Board to Board, Cable | Unshrouded | Gold | 2.54 µm | 100 µin | 0.12 in | 0.1 in | 3.05 mm | 0.538 " | 13.67 mm | ||||
Through Hole | Square | 4 | Solder | 1 | UL94 V-0 | Copper Alloy | 0.318 " | 8.08 mm | Push-Pull | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Header | 10 çin | 0.25 çm | Black | 2.54 mm | 3 A | All | Board to Board, Cable | Unshrouded | Gold | 2.54 µm | 100 µin | 0.12 in | 0.1 in | 3.05 mm | 0.538 " | 13.67 mm | ||||||
Through Hole, Right Angle | Square | 4 | Solder | 1 | UL94 V-0 | Copper Alloy | 0.23 in | Push-Pull | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Header | 10 çin | 0.25 çm | Black | 2.54 mm | 3 A | All | Board to Board, Cable | Unshrouded | Gold | 2.54 µm | 100 µin | 0.12 in | 0.1 in | 3.05 mm | 5.84 mm | ||||||||
Through Hole | Square | 4 | Solder | 2 | UL94 V-0 | Copper Alloy | 0.23 in | 2.54 mm | 0.1 in | Push-Pull | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Header | 10 çin | 0.25 çm | Black | 2.54 mm | 3 A | All | Board to Board, Cable | Unshrouded | Gold | 2.54 µm | 100 µin | 0.12 in | 0.1 in | 3.05 mm | 0.45 " | 11.43 mm | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2304 Series

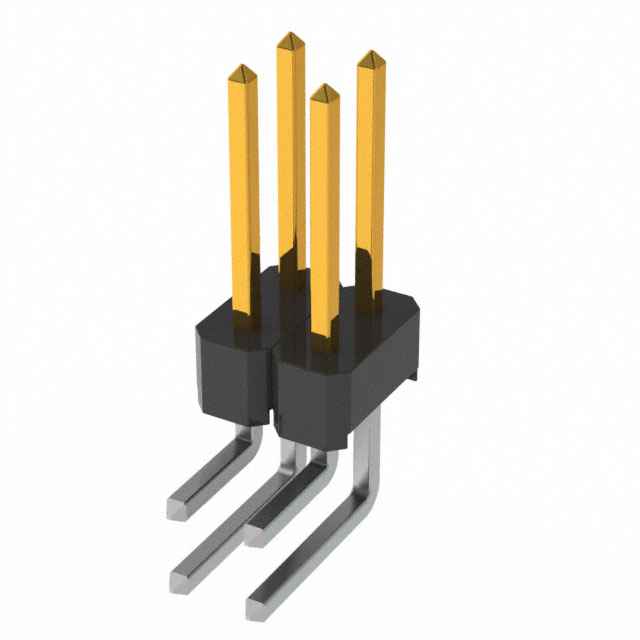

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
