Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMZ10501SHE/NOPB | LMZ10501 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Board Type | - | Fully Populated |
| Control Features | Enable, Active High | Enable, Active High |
| Current - Output | - | 1 A |
| Current - Output (Max) [Max] | 1 A | 1 A |
| Efficiency | 95 % | 95 % |
| Features | SCP, OTP, UVLO, OCP | SCP, OTP, UVLO, OCP |
| Frequency - Switching | - | 2 MHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 8-SMD Module | 8-LDFN Exposed Pad, Module, 8-SMD Module |
| Size / Dimension [x] | 0.12 in | 0.12 in |
| Size / Dimension [x] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.1 in | 0.1 in |
| Size / Dimension [y] | 2.6 mm | 2.6 mm |
| Size / Dimension [z] | 0.06 in | 0.06 in |
| Size / Dimension [z] | 1.5 mm | 1.5 mm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | - | 8-uSIP, 8-POS (3x2.5) |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input | - | 2.7 V |
| Voltage - Input | - | 5.5 V |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V | 2.7 V |
| Voltage - Output | - | 1.8 V |
| Voltage - Output 1 [Max] | 3.6 V | 3.6 V |
| Voltage - Output 1 [Min] | 0.6 V | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LMZ10501 Series

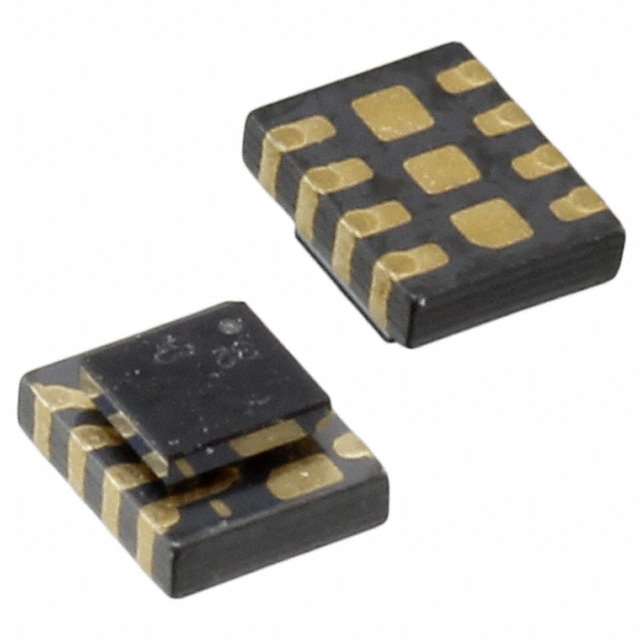

5.5V, 1A Step-Down DC/DC Power Module in 3mm × 2.6mm Package
| Part | Features | Number of Outputs | Type | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Supplier Device Package | Mounting Type | Package / Case | Control Features | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Efficiency | Voltage - Input (Min) [Min] | Supplied Contents | Board Type | Frequency - Switching | Current - Output | Voltage - Output | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LMZ10501SILTThe LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided.
The LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided. | OCP, OTP, SCP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | 8-uSIP | Surface Mount | 8-LDFN Exposed Pad, Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | ||||||||||
Texas Instruments LMZ10501SHE/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | OCP, OTP, SCP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | |||||||||||
Texas Instruments LMZ10501SILEVMLMZ10501 SIMPLE SWITCHER® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | Board(s) | Fully Populated | 2 MHz | 1 A | 1.8 V | Non-Isolated | 1 | DC/DC, Step Down | 2.7 V | 5.5 V | ||||||||||||||||||||||
Texas Instruments LMZ10501SHX/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | OCP, OTP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | |||||||||||
Texas Instruments LMZ10501SE/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | OCP, OTP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | |||||||||||
Texas Instruments LMZ10501SH/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | OCP, OTP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | |||||||||||
Texas Instruments LMZ10501EVAL/NOPBLMZ10501 SIMPLE SWITCHER® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | Board(s) | Fully Populated | 2 MHz | 1 A | 1.8 V | Non-Isolated | 1 | DC/DC, Step Down | 2.7 V | 5.5 V | ||||||||||||||||||||||
Texas Instruments LMZ10501SILRThe LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided.
The LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided. | OCP, OTP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | 8-uSIP | Surface Mount | 8-LDFN Exposed Pad, Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | ||||||||||
Texas Instruments LMZ10501SEX/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | OCP, OTP, UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 125 °C | -40 °C | 5.5 V | 95 % | 2.7 V | |||||||||||
Texas Instruments LMZ10501SEE/NOPBNon-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 1A 2.7V - 5.5V Input | UVLO | 1 | Non-Isolated PoL Module | 1 A | 3.6 V | 0.6 V | 8-POS (3x2.5) | Surface Mount | 8-SMD Module | Active High, Enable | ITE (Commercial) | 0.06 in | 0.12 in | 0.1 in | 2.6 mm | 3 mm | 1.5 mm | 5.5 V | 95 % | 2.7 V |
Description
General part information
LMZ10501 Series
The LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided.
The LMZ10501 nano module is an easy-to-use step-down DC-DC design capable of driving up to 1-A load in space-constrained applications. Only an input capacitor, an output capacitor, a small V CON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSIP footprint package with an inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided.
