10116602-101LF

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10116602-101LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Connector Style	Termination	Mounting Type	Color	Number of Positions	Number of Positions Loaded	Number of Columns	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Connector Usage	Pitch [x]	Pitch [x]	Features	Number of Rows
Amphenol ICC (FCI) 10116602-101LF	High Speed	Press-Fit	Through Hole	Black	150	All	10	Gold	85 °C	-55 °C	UL94 V-0	Header Male Pins	Daughtercard	0.055 in	1.4 mm
Amphenol ICC (FCI) 10116602-111LF	High Speed	Press-Fit	Through Hole	Black	150	All	10	Gold	85 °C	-55 °C	UL94 V-0	Header Male Pins		0.055 in	1.4 mm	Protective Cover	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

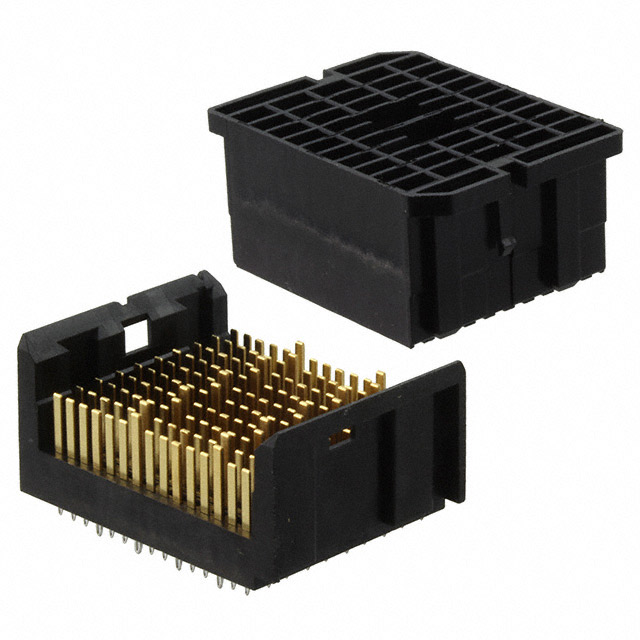

150 Connector Header, Male Pins Through Hole Black High Speed

Technical documentation and resources
