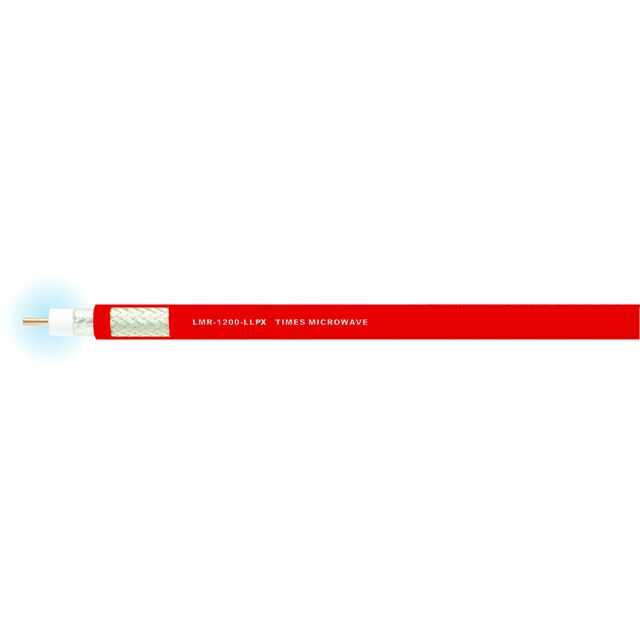

LMR-1200-LLPX

Active

Amphenol Times Microwave Systems

LMR-1200 LOW LOSS PLENUM, LISTED

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

LMR-1200 LOW LOSS PLENUM, LISTED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-1200-LLPX	LMR-120 Series

Cable Type	Coaxial - Plenum	Coaxial, Coaxial - Plenum
Conductor Material	Copper, Bare	Copper, Bare
Dielectric Diameter [diameter]	0.92 "	0.92 "
Dielectric Diameter [diameter]	23.37 mm	23.37 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	-	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	26.67 mm	26.67 - 30.48 mm
Jacket (Insulation) Diameter [diameter]	1.05 in	1.05 - 1.2 in
Jacket (Insulation) Material	Fluoropolymer, Plenum	Polyethylene (PE), Riser, Fluoropolymer, Plenum, Polyethylene (PE)
Jacket Color	Red	Black, Red
Length	-	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	76	76 - 88

LMR-1200 W/NON-HGN FR JKT L FOOT

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket Color	Dielectric Material	Spool Size	Spool Size	Shield Type	Shield Material	Features	Length	Cable Type	Impedance	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material
Amphenol Times Microwave Systems LMR-1200-FR	30.48 mm	1.2 in	85 °C	-40 °C	Copper, Bare	Black	Foam Polyethylene (FPE)	500 '	152.4 m	Braid	Aluminum, Copper, Tinned	Fire Retardant	Enter Number of Feet in Order Quantity	Coaxial	50 Ohms	88	0.92 "	23.37 mm	Polyethylene (PE), Riser
Amphenol Times Microwave Systems LMR-1200-LLPX	26.67 mm	1.05 in	125 °C	-40 °C	Copper, Bare	Red	Polytetrafluoroethylene (PTFE)			Braid	Aluminum, Copper, Tinned			Coaxial - Plenum	50 Ohms	76	0.92 "	23.37 mm	Fluoropolymer, Plenum
Amphenol Times Microwave Systems LMR-1200-DB	30.48 mm	1.2 in	85 °C	-40 °C	Copper, Bare	Black	Foam Polyethylene (FPE)			Braid	Aluminum, Copper, Tinned	Direct Burial, Watertight		Coaxial	50 Ohms	88	0.92 "	23.37 mm	Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 47.86

General part information

Coaxial - Plenum Cable 50 Ohms
