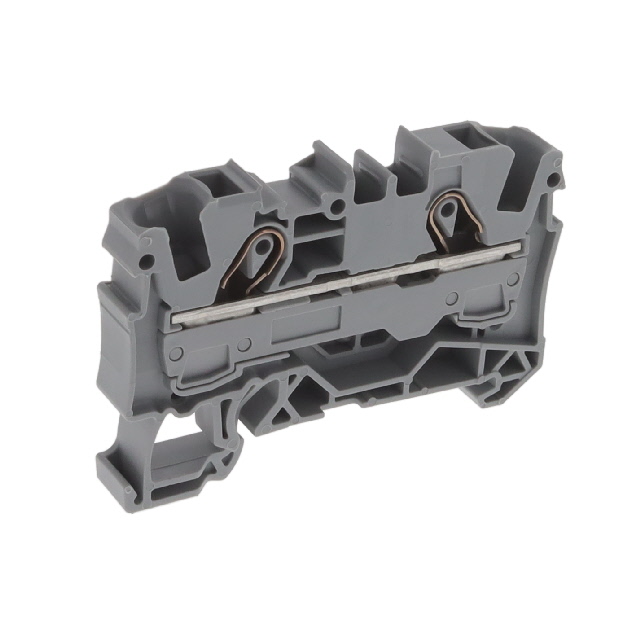

2006-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP, 41 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP, 41 A

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², PUSH IN

Part	Color	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Material - Insulation	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Terminal - Width	Stripping Length [Min]	Stripping Length [Max]	Number of Positions	Type	Current - UL	Voltage - UL	Current - IEC	Voltage - IEC
WAGO Corporation 2006-1207	Green, Yellow	1	14 AWG	8 AWG	Push In, Spring	Polyamide (PA66), Nylon 6/6	10 mm²	2.5 mm²	7.5 mm	13 mm	15 mm	2	Ground, Earth
WAGO Corporation 2006-1201	Gray	1	14 AWG	8 AWG	Push In, Spring	Polyamide (PA66), Nylon 6/6	10 mm²	2.5 mm²	7.5 mm	13 mm	15 mm	2	Feed Through	50 A	600 V	57 A	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Gray 8-14 AWG
