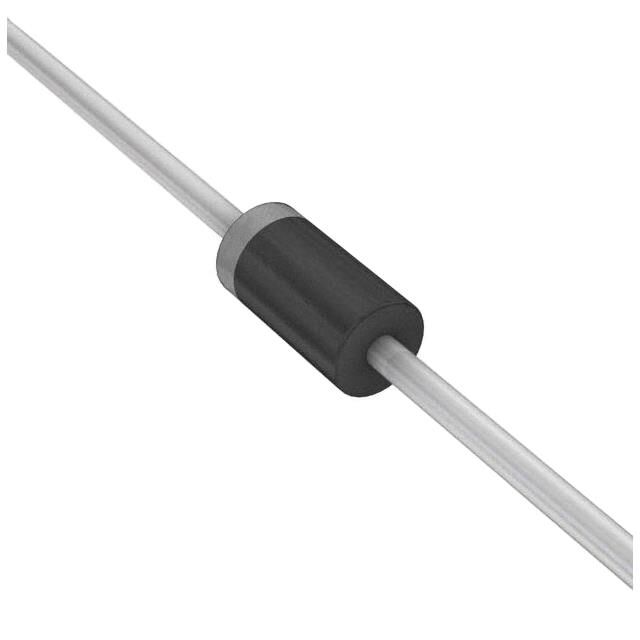

UF4002-G

Active

Comchip Technology

DIODE STANDARD 100V 1A DO41

Search across all available documentation for this part.

Active

Comchip Technology

DIODE STANDARD 100V 1A DO41

Technical Specifications

Parameters and characteristics for this part

Specification	UF4002-G

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DIODE STANDARD 100V 1A DO41

Part	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Capacitance @ Vr, F	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Speed	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
Comchip Technology UF4002-G	5 µA	Standard	150 °C	-55 °C	Axial, DO-204AL, DO-41	20 pF	Through Hole	100 V	1 A	50 ns	200 mA, 500 ns	1 V	DO-41

General part information

Diode 100 V 1A Through Hole DO-41
