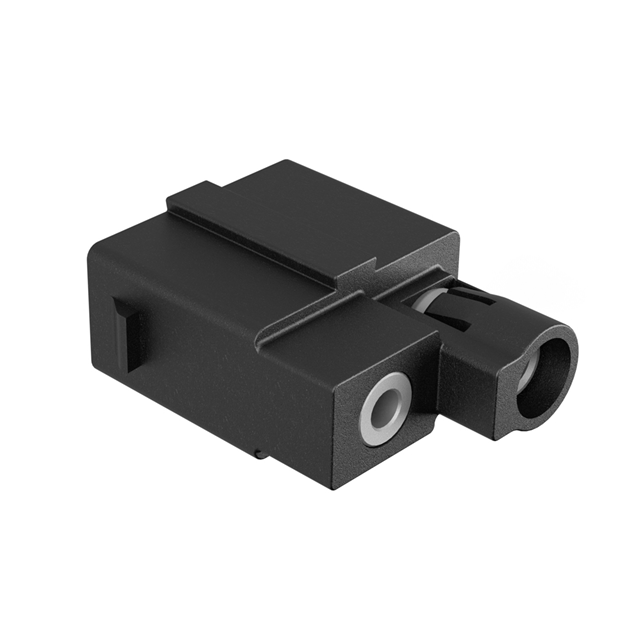

PRM2400-G2-PNL
ActiveAmphenol Sine Systems Corp
2 POSITION MALE QUICK CONNECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRM2400-G2-PNL
ActiveAmphenol Sine Systems Corp
2 POSITION MALE QUICK CONNECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRM2400-G2-PNL |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Male Pin, Power |
| Fastening Type | Locking Ramp |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Type | Discrete |
PRM2400 Series
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Cable Termination | Wire Type | Number of Rows | Mounting Type | Contact Type | Contact Finish | Connector Type | Number of Positions | Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 12 AWG | 10 AWG | Crimp | Discrete | 1 | Panel Mount Snap-In | Female Socket Power | Gold | Plug | 2 | Black | Latch Lock |
Amphenol Sine Systems Corp | 14 AWG | 12 AWG | Crimp | Discrete | 1 | Male Pin Power | Gold | Receptacle | 2 | Black | Locking Ramp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.74 | |
| 10 | $ 6.09 | |||
| 25 | $ 5.76 | |||
| 50 | $ 5.62 | |||
| 200 | $ 5.33 | |||
| 400 | $ 4.77 | |||
| 600 | $ 4.49 | |||
| 1000 | $ 3.93 | |||
| 2600 | $ 3.73 | |||
Description
General part information
PRM2400 Series
2 (Power) Position Rectangular Receptacle Connector Crimp Gold 12-14 AWG
