NDY0515C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC

Part	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]

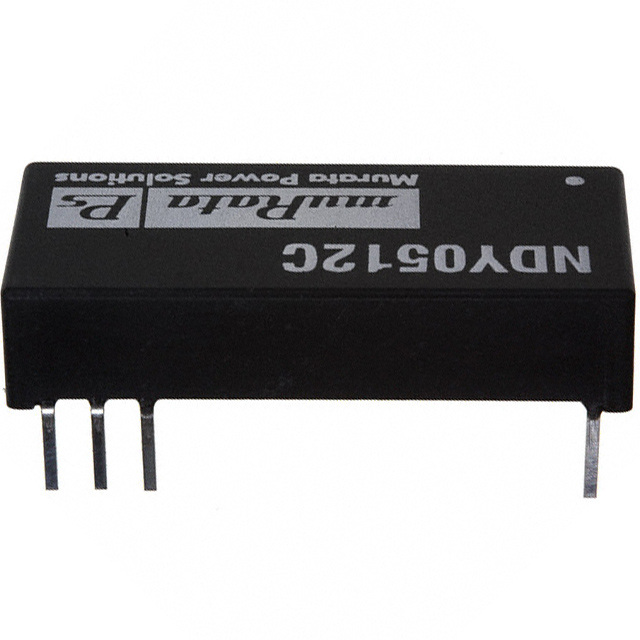

Murata Power Solutions Inc. NDY0512C	Isolated Module	1000 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	250 mA	ITE (Commercial)	24-DIP Module, 8 Leads	1	4.5 V	Through Hole	71 %	12 V	85 °C	-40 °C	3 W	9 V
Murata Power Solutions Inc. NDY0515C	Isolated Module	1000 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	200 mA	ITE (Commercial)	24-DIP Module, 8 Leads	1	4.5 V	Through Hole	73 %	15 V	85 °C	-40 °C	3 W	9 V
Murata Power Solutions Inc. NDY0509C	Isolated Module	1000 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	333 mA	ITE (Commercial)	24-DIP Module, 8 Leads	1	4.5 V	Through Hole	72 %	9 V	85 °C	-40 °C	3 W	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated DC/DC Converters - Through Hole 3W 5V-12V DIP24 DC/DC
