AZ2700-1A-110DW

Active

American Zettler

RELAY GEN PURPOSE SPST 30A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2700-1A-110DW

Active

American Zettler

RELAY GEN PURPOSE SPST 30A 110V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 7.29

Description

General part information

AZ2700-1A Series

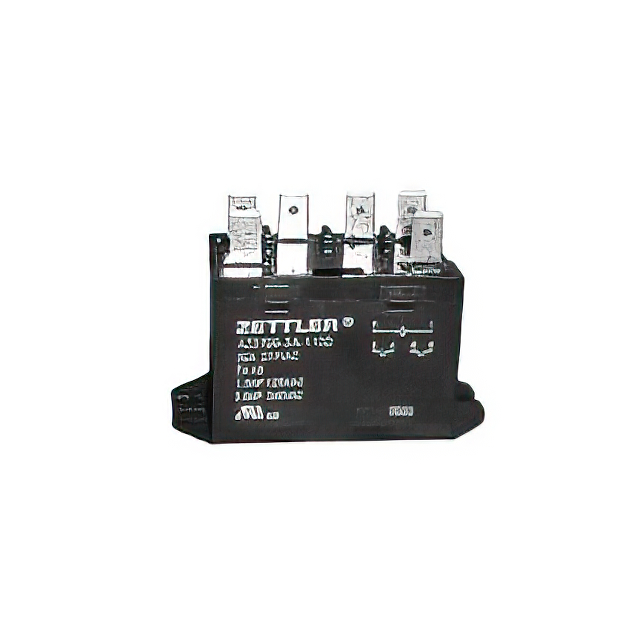

General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Chassis Mount
