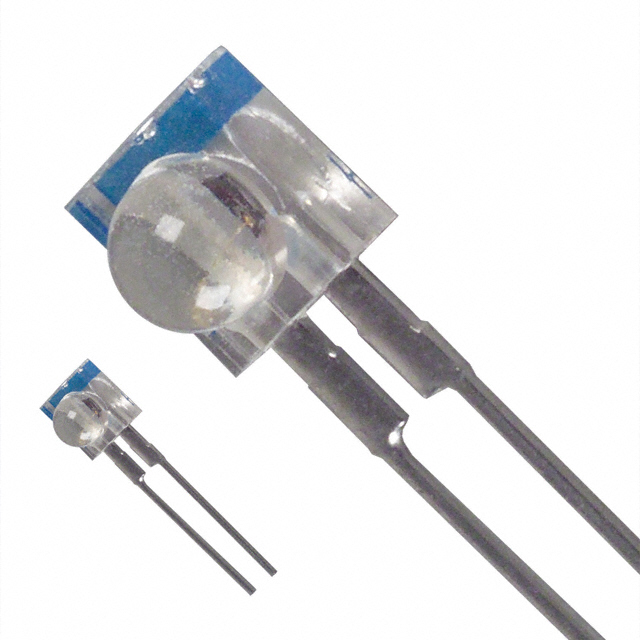

PNA2602M

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 850NM SIDE VIEW RAD

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 850NM SIDE VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PNA2602M

Current - Collector (Ic) (Max) [Max]	30 mA
Mounting Type	Through Hole
Orientation	Side View
Package / Case	Radial
Power - Max [Max]	100 mW
Viewing Angle	70 °
Voltage - Collector Emitter Breakdown (Max)	20 V
Wavelength	850 nm

Part	Orientation	Viewing Angle	Power - Max [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Mounting Type	Wavelength	Voltage - Collector Emitter Breakdown (Max)
Panasonic Industrial Automation Sales PNA2602M	Side View	70 °	100 mW	Radial	30 mA	Through Hole	850 nm	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors 850nm Side View Radial
