2C2AA-505-ISG

Active

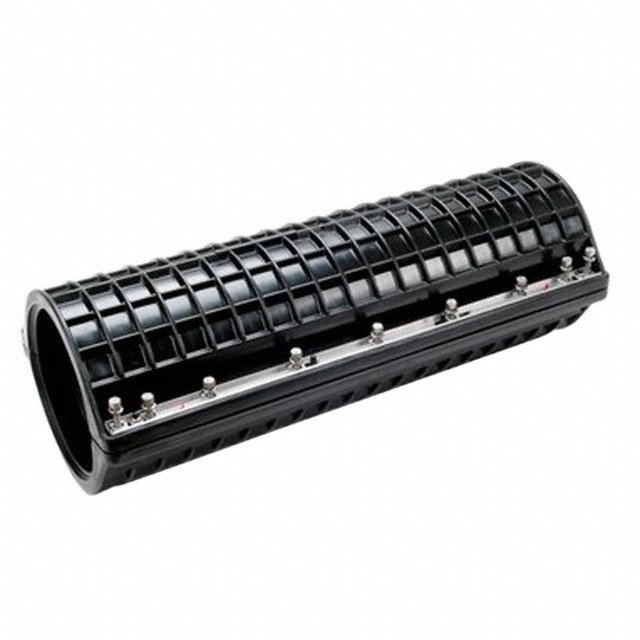

WIRE SPLICE ENCLOSURE SYS 1800PR

Search across all available documentation for this part.

Active

WIRE SPLICE ENCLOSURE SYS 1800PR

Technical Specifications

Parameters and characteristics for this part

Specification	2C2AA-505-ISG

Diameter - Inside [diameter]	203.2 mm
Features	Modular Connectors
Length - Overall [x]	469.9 mm
Length - Overall [x]	18.5 in
Number of Cable Pairs	1800 Pairs
Number of Cable Pairs [Max]	26 AWG
Number of Cable Pairs [Min]	24 AWG
Sheath Opening	254 mm
Sheath Opening	10 in
Type	Enclosure System, Installed Sealing Gasket

WIRE SPLICE ENCLOSURE SYS 1800PR

Part	Type	Features	Length - Overall [x]	Length - Overall [x]	Diameter - Inside [diameter]	Sheath Opening	Sheath Opening	Number of Cable Pairs [Max]	Number of Cable Pairs [Min]	Number of Cable Pairs
3M 2C2AA-505-ISG	Enclosure System, Installed Sealing Gasket	Modular Connectors	469.9 mm	18.5 in	203.2 mm	254 mm	10 in	26 AWG	24 AWG	1800 Pairs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Splice Enclosure System, Installed Sealing Gasket 18.50" (469.9mm) 1800 Pairs @ 24-26 AWG
