Q-2504N000H084i

Active

Amphenol Custom Cable

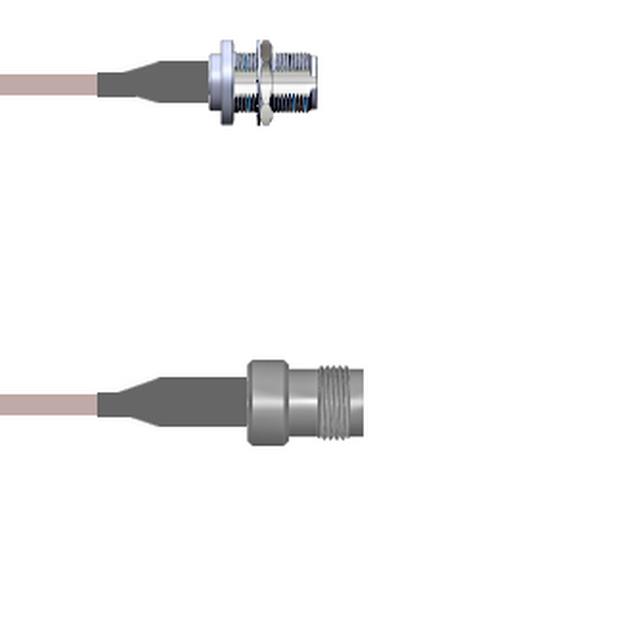

CBL ASSY NTYPE-TNC JACK-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2504N000H084i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2504N000H084i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms

Q-2504N0 Series

Part	2nd Contact Gender	2nd Connector	1st Connector	Overall Impedance	1st Connector Mounting Feature	2nd Connector Mounting Type	Features	1st Connector Mounting Type	Color	Frequency - Max [Max]	1st Contact Gender	Cable Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2504N000H2.5M	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-2504N000H0.5M	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142		19.69 "	50 cm
Amphenol Custom Cable Q-2504N000H024i	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142		24 "	609.6 mm
Amphenol Custom Cable Q-2504N000H018i	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142				457.2 mm	457.2 mm
Amphenol Custom Cable Q-2504N000H.75M	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142		29.53 "	750 mm
Amphenol Custom Cable Q-2504N000H048i	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-2504N000H002M	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-2504N000H003M	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-2504N000H006i	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142		6 in	152.4 mm
Amphenol Custom Cable Q-2504N000H084i	Female	TNC Jack	N-Type Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Shielded	Panel Mount	Copper	11 GHz	Female	RG-142	7 ft	84 in	2.1 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 159.10
		25	$ 156.00
		50	$ 152.91
		100	$ 149.81
		250	$ 146.72

Description

General part information

Q-2504N0 Series

Cable Assembly Coaxial N-Type to TNC RG-142 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
