SFW5R-3STE1LF

Active

Amphenol ICC (FCI)

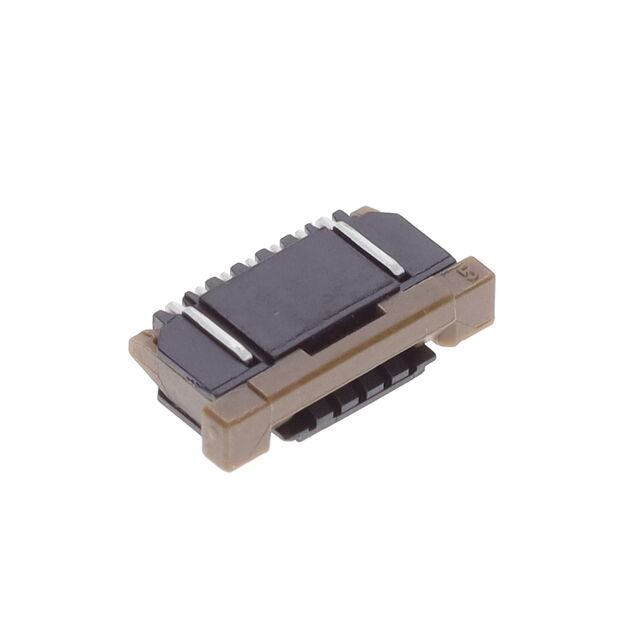

CONN FFC FPC BOTTOM 5POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFW4R-4STE5LF fci basics ffc fpc productpresentation Other Related Document +2

SFW5R-3STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 5POS 1MM R/A

Deep-Dive with AI

DocumentsSFW4R-4STE5LF fci basics ffc fpc productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW5R-3STE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Black
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW5R Series

Part	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Cable End Type	Housing Color	Actuator Material	Locking Feature	Mating Cycles	Housing Material	Contact Material	Actuator Color	Voltage Rating	Termination	Connector/Contact Type	Flat Flex Type	Pitch [x]	Pitch [x]	Mounting Type	FFC, FCB Thickness [z]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness
Amphenol ICC (FCI) SFW5R-2STE9LF	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Top	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin	105 ░C	-55 °C
Amphenol ICC (FCI) SFW5R-2STGE1LF	UL94 V-0	0.106 in	2.7 mm	Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Top	FPC	0.039 in	1 mm	Surface Mount Right Angle		Gold	105 ░C	-55 °C	0.33 mm
Amphenol ICC (FCI) SFW5R-1STE9LF	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Bottom	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin	105 ░C	-55 °C
Amphenol ICC (FCI) SFW5R-1STE1LF	UL94 V-0	0.106 in	2.7 mm	Notched	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Brown	100 V	Solder	Contacts Bottom	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin	105 ░C	-55 °C
Amphenol ICC (FCI) SFW5R-1STAE1LF	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Bottom	FPC	0.039 in	1 mm	Surface Mount Right Angle		Gold	105 ░C	-55 °C	0.3 mm
Amphenol ICC (FCI) SFW5R-1STE1	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black		Solder	Contacts Bottom	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin Alloy
Amphenol ICC (FCI) SFW5R-2STAE9LF	UL94 V-0	0.106 in	2.7 mm	Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Top	FPC	0.039 in	1 mm	Surface Mount Right Angle		Gold	105 ░C	-55 °C	0.33 mm
Amphenol ICC (FCI) SFW5R-3STE1LF	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Black	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black	100 V	Solder	Contacts Bottom	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin	105 ░C	-55 °C
Amphenol ICC (FCI) SFW5R-2STE1	UL94 V-0	0.106 in	2.7 mm	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Black		Solder	Contacts Top	FFC FPC	0.039 in	1 mm	Surface Mount Right Angle	0.3 mm 0.33 mm	Tin Alloy
Amphenol ICC (FCI) SFW5R-3STE9LF	UL94 V-0	0.106 in	2.7 mm	Notched	Black	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	20	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Brown	100 V	Solder	Contacts Bottom	FPC	0.039 in	1 mm	Surface Mount Right Angle		Tin	105 ░C	-55 °C	0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.42
		10	$ 0.32
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.22
		500	$ 0.20
		1000	$ 0.19
	Tape & Reel (TR)	2000	$ 0.19

Description

General part information

SFW5R Series

5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle

SFW5R-3STE1LF

Deep-Dive with AI

SFW5R-3STE1LF

Deep-Dive with AI

Technical Specifications

SFW5R Series

Pricing

Description

SFW5R Series

Documents

SFW4R-4STE5LF

fci basics ffc fpc productpresentation Other Related Document

Datasheet

SFW12R-4STAE1LF

SFW5R Series
