3110-16-003-13-00-TR

Active

CnC Tech, LLC

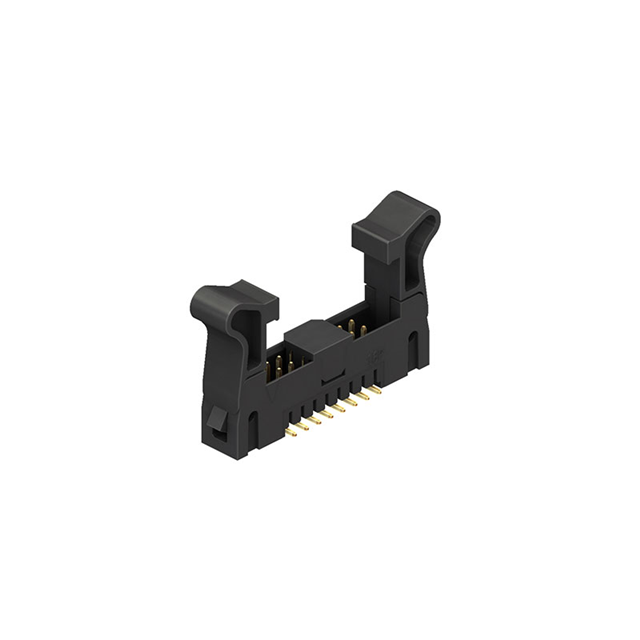

HEADER, 0.079" (2.00MM), 16 POS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3110-16-003-13-00-TR

Active

CnC Tech, LLC

HEADER, 0.079" (2.00MM), 16 POS.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3110-16-003-13-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3110-16 Series

Part	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Number of Rows	Termination	Contact Type	Insulation Material	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Features	Number of Positions	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Material Flammability Rating	Insulation Height	Insulation Height
CnC Tech, LLC 3110-16-001-13-00	Square	0.079 in	2 mm	Brass	2	Solder	Male Pin	Polybutylene Terephthalate (PBT)	Header	Gold	All	Keying Slot	16	Latch Lock/Eject Hooks Long	0.079 in	2 mm	0.122 "	3.1 mm	Through Hole	Flash	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	UL94 V-0
CnC Tech, LLC 3110-16-001-11-00	Square	0.079 in	2 mm	Brass	2	Solder	Male Pin	Polybutylene Terephthalate (PBT)	Header	Gold	All	Keying Slot	16	Push-Pull	0.079 in	2 mm	0.122 "	3.1 mm	Through Hole	Flash	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	UL94 V-0
CnC Tech, LLC 3110-16-003-11-00-TR	Square	0.079 in	2 mm	Brass	2	Solder	Male Pin	Polybutylene Terephthalate (PBT)	Header	Gold	All	Keying Slot	16	Push-Pull	0.079 in	2 mm			Surface Mount	Flash	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	UL94 V-0
CnC Tech, LLC 3110-16-002-13-00	Square	0.079 in	2 mm	Brass	2	Solder	Male Pin	Polybutylene Terephthalate (PBT)	Header	Gold	All		16	Latch Lock/Eject Hooks Long	0.079 in	2 mm	0.122 "	3.1 mm	Through Hole Right Angle	Flash	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	UL94 V-0	6 mm	0.236 in
CnC Tech, LLC 3110-16-003-13-00-TR	Square	0.079 in	2 mm	Brass	2	Solder	Male Pin	Polybutylene Terephthalate (PBT)	Header	Gold	All	Keying Slot	16	Latch Lock/Eject Hooks Long	0.079 in	2 mm			Surface Mount	Flash	Board to Cable/Wire	-40 °C	105 ░C	Shrouded - 4 Wall	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.45
		10	$ 1.26
	Digi-Reel®	1	$ 1.45
		10	$ 1.26
	Tape & Reel (TR)	400	$ 1.07

Description

General part information

3110-16 Series

Connector Header Surface Mount 16 position 0.079" (2.00mm)
