ACR-22-01-G-00.50-S-S1-P-1

Active

Samtec Inc.

CBL ASSY 30P F-30P SKT 1.64'

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY 30P F-30P SKT 1.64'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

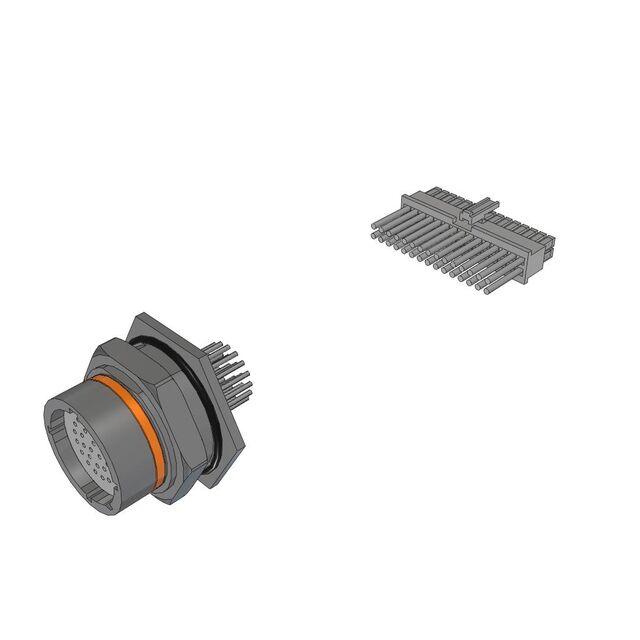

Cable Assembly Circular 30 pos Female to Rectangular 30 pos Socket 1.64' (500.0mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACR-22-01-G-00.50-S-S1-P-1	ACR-22 Series

1st Connector Gender	-	Female Sockets
1st Connector Mounting Type	-	Panel Mount
1st Connector Number of Positions	-	8 positions
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	Keyed
1st Connector Shell Size - Insert	-	M22
1st Connector Type	-	Receptacle
2nd Connector Type	-	Wire Leads
Assembly Configuration	-	Standard
Cable Type	Individual	Individual
Color	Black	Black, Multiple
Connector Type	Circular 30 pos Female to Rectangular 30 pos Socket	Circular 30 pos Female to Rectangular 30 pos Socket, Circular 08 pos Female to Rectangular 08 pos Socket
Ingress Protection	-	IP68 - Dust Tight, Waterproof
Length [x]	1.64 ft	1.64 ft
Length [x]	500 mm	500 mm
Shielding	Unshielded	Unshielded
Usage	-	Industrial Environments

CBL ASSY 30P F-30P SKT 1.64'

Part	Shielding	Length [x]	Length [x]	Color	Cable Type	Connector Type	1st Connector Type	Assembly Configuration	1st Connector Shell Size - Insert	Ingress Protection	Usage	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Gender	1st Connector Mounting Type	1st Connector Number of Positions
Samtec Inc. ACR-22-01-G-00.50-S-S1-P-1	Unshielded	1.64 ft	500 mm	Black	Individual	Circular 30 pos Female to Rectangular 30 pos Socket
Samtec Inc. ACR-22-03-G-00.50-S-S1-P-1	Unshielded	1.64 ft	500 mm	Black	Individual	Circular 08 pos Female to Rectangular 08 pos Socket
Samtec Inc. ACR-22-03-G-00.50-S-BC-M-1	Unshielded	1.64 ft	500 mm	Multiple	Individual		Receptacle	Standard	M22	IP68 - Dust Tight, Waterproof	Industrial Environments	All	Keyed	Wire Leads	Female Sockets	Panel Mount	8 positions
