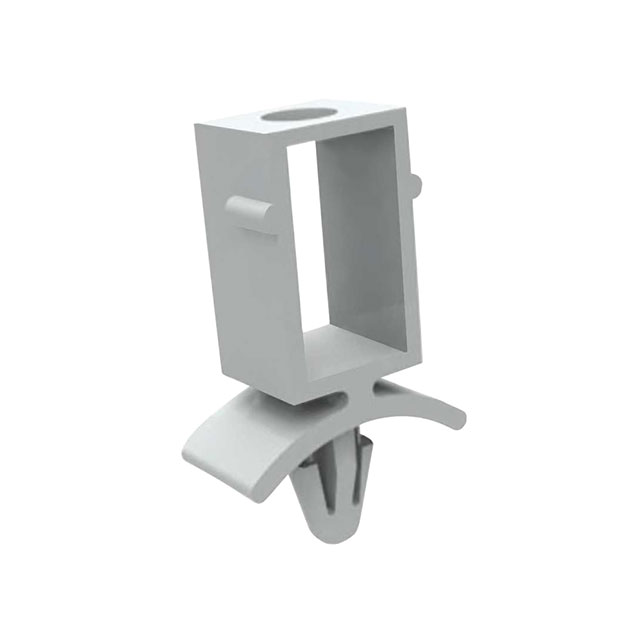

CBSS-12-19
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LCK 17.3MM
Deep-Dive with AI
Search across all available documentation for this part.
CBSS-12-19
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LCK 17.3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBSS-12-19 |
|---|---|
| Between Board Height | 17.3 mm |
| Between Board Height | 0.681 in |
| Features | Winged, Stackable |
| Holding Type | Resting Mount |
| Length - Overall [x] | 25.7 mm |
| Length - Overall [x] | 1.012 " |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 3.96 mm |
| Mounting Hole Diameter [diameter] | 0.15625 in |
| Mounting Hole Diameter [diameter] | 0.156 in |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.19 | |
| 5 | $ 0.16 | |||
| 10 | $ 0.13 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
Description
General part information
CBSS-12 Series
Board Support Resting Mount / Snap Lock Nylon 0.681" (17.30mm)
