LMR50410EVM

Active

Texas Instruments

4-V TO 36-V, 1-A SYNCHRONOUS STE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR50410EVM

Active

Texas Instruments

4-V TO 36-V, 1-A SYNCHRONOUS STE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.80

Description

General part information

LMR50410 Series

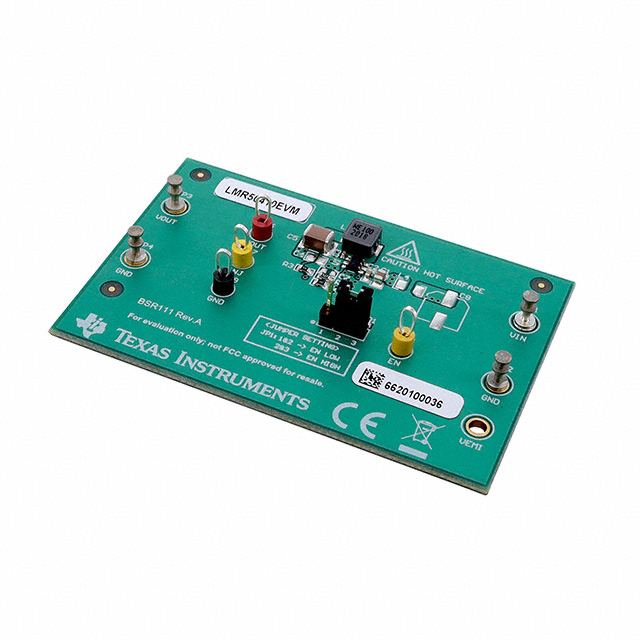

LMR50410, PLMR50410 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR50410EVM	LMR50410 Series

Board Type	Fully Populated	Fully Populated
Current - Output	1 A	1 A
Frequency - Switching	700 kHz	2.1 - 700 MHz
Function	-	Step-Down
Grade	-	Automotive
Main Purpose	DC/DC, Step Down	DC/DC, Step Down
Mounting Type	-	Surface Mount
Number of Outputs	-	1
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Output Configuration	-	Positive
Output Type	-	Adjustable
Output Type	-	1.81 mOhm
Outputs and Type	Non-Isolated	Non-Isolated
Outputs and Type	1	1
Package / Case	-	SOT-23-6
Qualification	-	AEC-Q100
Regulator Topology	Buck	Buck
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	SOT-23-6
Synchronous Rectifier	-	True
Topology	-	Buck
Utilized IC / Part	PLMR50410, LMR50410	PLMR50410, LMR50410, LMR50410-Q1
Voltage - Input (Max)	-	36 V
Voltage - Input (Min)	-	4 V
Voltage - Input [Max]	36 V	36 V
Voltage - Input [Min]	4 V	4 V
Voltage - Output	5 V	3.3 - 5 V
Voltage - Output (Max)	-	28 V
Voltage - Output (Min/Fixed)	-	1 - 5 V

LMR50410 Series

CONV DC-DC 4V TO 36V SYNCHRONOUS STEP DOWN SINGLE-OUT 1V TO 28V 1A 6-PIN SOT-23 T/R AUTOMOTIVE AEC-Q100

Part	Supplier Device Package	Voltage - Output (Min/Fixed)	Package / Case	Voltage - Output (Max)	Output Type	Voltage - Input (Max) [Max]	Current - Output	Number of Outputs	Grade	Topology	Frequency - Switching	Qualification	Mounting Type	Function	Output Configuration	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part
Texas Instruments LMR50410YQDBVRQ1	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410XFDBVR	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1		Buck	700 kHz		Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410Y3FQDBVRQ1	SOT-23-6	3.3 V	SOT-23-6			36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C	1.81 mOhm
Texas Instruments LMR50410EVM							1 A				700 kHz									Fully Populated	Buck	Non-Isolated	1	5 V	Board(s)	DC/DC, Step Down	4 V	36 V	LMR50410, PLMR50410
Texas Instruments LMR50410QEVM							1 A				2.1 MHz									Fully Populated	Buck	Non-Isolated	1	3.3 V	Board(s)	DC/DC, Step Down	4 V	36 V	LMR50410-Q1
Texas Instruments LMR50410Y5FQDBVRQ1	SOT-23-6	5 V	SOT-23-6			36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C	1.81 mOhm
Texas Instruments LMR50410YFQDBVRQ1	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410XDBVR	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1		Buck	700 kHz		Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
