1275 SL002

Active

ALPHA WIRE

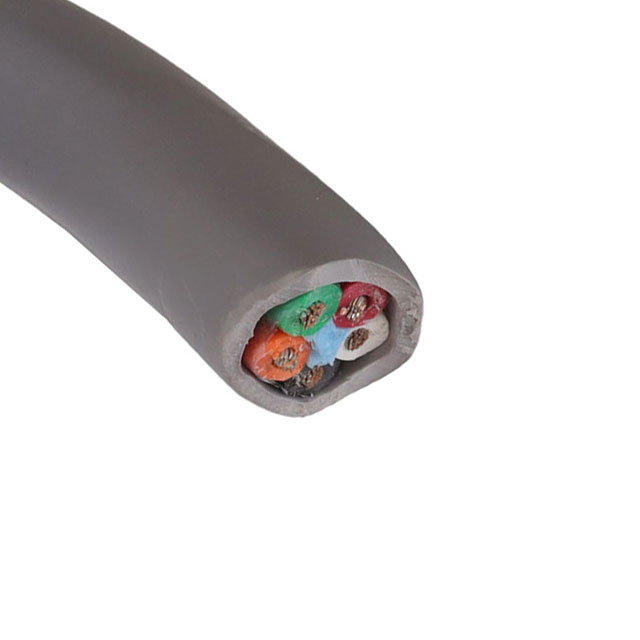

CABLE 5COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 14AWG SLATE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.61

General part information

5 Conductor Multi-Conductor Cable Slate 14 AWG 500.0' (152.4m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1275 SL002	1275 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [diameter]	0.0147 in	0.0147 in
Jacket (Insulation) Diameter [diameter]	14.83 mm	14.83 mm
Jacket (Insulation) Diameter [diameter]	0.584 in	0.584 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm	1.6 mm
Jacket (Insulation) Thickness	0.063 in	0.063 in
Jacket Color	Slate	Slate
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	5	5
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	13.5 AWG	13.5 AWG

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 5 CONDUCTOR, 14 AWG, 2.08 MM², 100 FT, 30.5 M

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Wire Gauge	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]	Voltage	Conductor Strand [diameter]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
ALPHA WIRE 1275 SL005	-20 C	80 C	5	Copper, Tinned	Communication, Control	1.6 mm	0.063 in	Slate	13.5 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	600 V	0.0147 in	19 Strands	14.83 mm	0.584 in	Multi-Conductor
ALPHA WIRE 1275 SL002	-20 C	80 C	5	Copper, Tinned	Communication, Control	1.6 mm	0.063 in	Slate	13.5 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	600 V	0.0147 in	19 Strands	14.83 mm	0.584 in	Multi-Conductor
