C14610A00610013

Active

Amphenol Tuchel Industrial

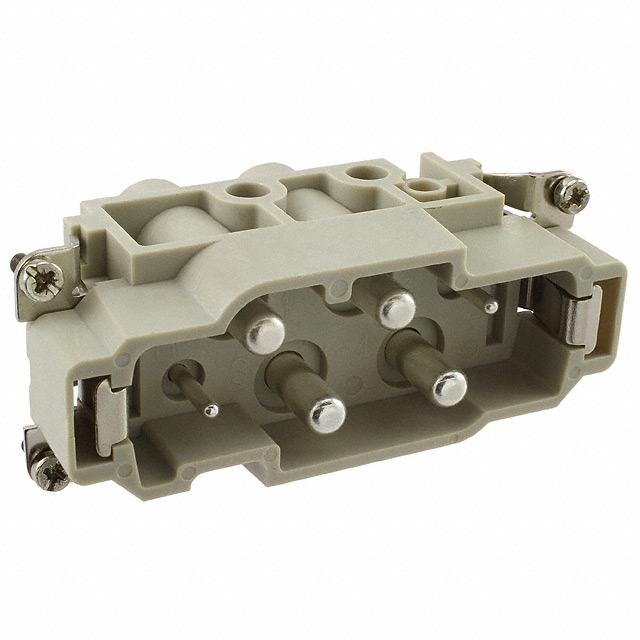

INSERT MALE 4+2POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 4+2POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A00610013

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4, 2
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Screw
Voltage Rating	400 V

Part	Material Flammability Rating	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Contact Finish	Current Rating (Amps)	Voltage Rating	Termination Style	Size	Housing Material	Number of Positions
Amphenol Tuchel Industrial C14610A0060021	UL94 V-0	Brass	6+Ground	125 °C	-40 °C	Male	Gray	Silver	10 A	600 V	Screw
Amphenol Tuchel Industrial C14610A0061021	UL94 V-0	Brass	6+Ground	125 °C	-40 °C	Male	Gray	Silver	10 A	600 V	Screw
Amphenol Tuchel Industrial C14610A00610013	UL94 V-0	Copper Alloy	Ground	125 °C	-40 °C	Male	Gray	Silver		400 V	Screw	E16	Polycarbonate (PC)	2 4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 38.20

General part information

Male Insert Gray 4+2+Ground Position Screw
