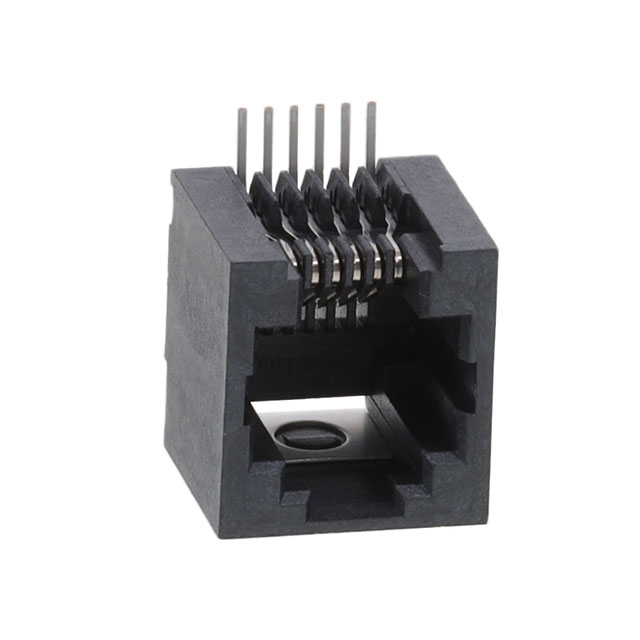

RJE231660413T
ActiveAmphenol ICC (Commercial Products)
6P6C, VERTICAL, SMT, NO SHIELD,
Deep-Dive with AI
Search across all available documentation for this part.
RJE231660413T
ActiveAmphenol ICC (Commercial Products)
6P6C, VERTICAL, SMT, NO SHIELD,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE231660413T |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Vertical |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.40 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| Tape & Reel (TR) | 200 | $ 1.06 | ||
| 400 | $ 0.97 | |||
| 600 | $ 0.87 | |||
| 1000 | $ 0.77 | |||
| 2000 | $ 0.73 | |||
| 5000 | $ 0.68 | |||
| 10000 | $ 0.64 | |||
Description
General part information
RJE2316 Series
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded
