MS3126F8-33P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126F8-33P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3126F8-33P |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Cable Opening [custom] | 3.18 mm |
| Cable Opening [custom] | 0.125 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief, Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert | 8-33 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.85 | |
| 10 | $ 87.89 | |||
| 25 | $ 80.00 | |||
| 50 | $ 74.68 | |||
| 100 | $ 69.87 | |||
MS3126F8 Series
MIL-26482 MS/PT/CMB PLUG
| Part | Color | Shielding | Shell Finish | Contact Finish - Mating | Grade | Contact Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Termination | Qualification | Mounting Type | Current Rating (Amps) | Shell Size - Insert | Fastening Type | Applications | Connector Type | Cable Opening [custom] | Cable Opening [custom] | Insert Material | Primary Material | Voltage Rating | Ingress Protection | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F8-33P | Olive Drab | Unshielded | Olive Drab Chromate over Cadmium | Gold | Military | Copper Alloy | Coupling Nut, Strain Relief | -55 °C | 125 °C | Aluminum | Crimp | MIL-DTL-26482 Series I | Free Hanging (In-Line) | 7.5 A | 8-33 | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Male Pins, Plug | 3.18 mm | 0.125 in | Neoprene | Metal | 600 VAC | Environment Resistant | N |
Description
General part information
MS3126F8 Series

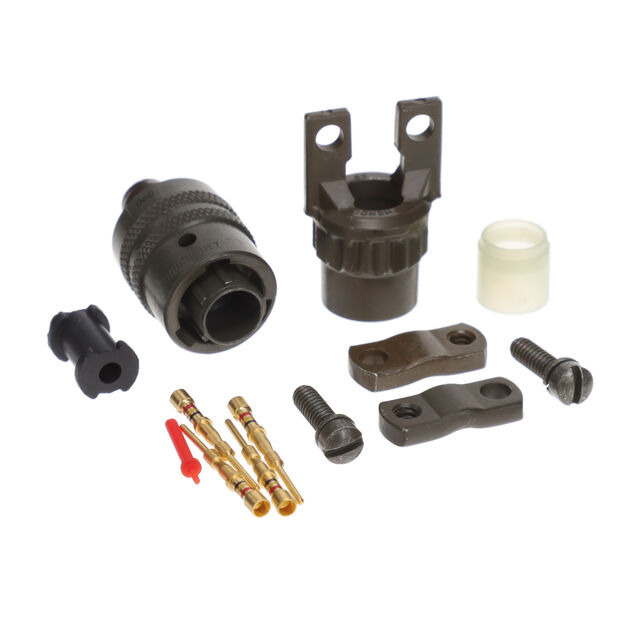

3 Position Circular Connector Plug, Male Pins Crimp
