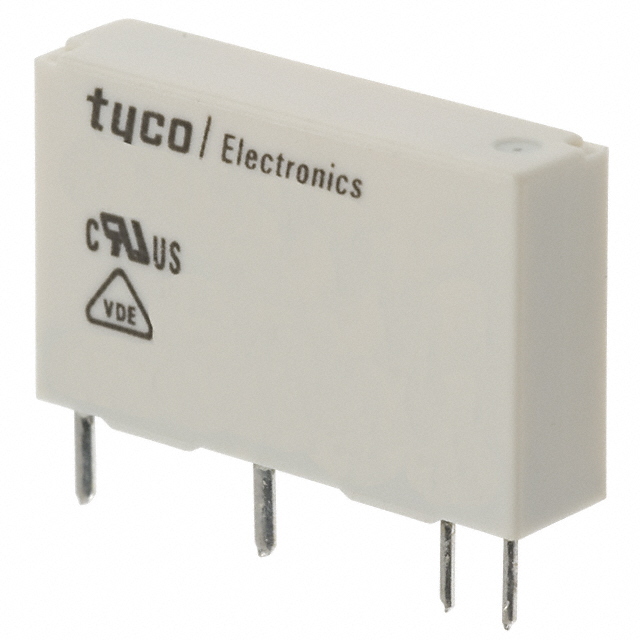

PCN-123D3MHZ,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 23.5V
Deep-Dive with AI
Search across all available documentation for this part.
PCN-123D3MHZ,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 23.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCN-123D3MHZ,000 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 5.1 mA |
| Coil Resistance | 4.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 23.5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 375 W, 831 VA |
| Mounting Type | Through Hole |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 125 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.89 | |
| 10 | $ 5.52 | |||
| 25 | $ 4.91 | |||
| 50 | $ 4.66 | |||
| 100 | $ 4.42 | |||
| 250 | $ 3.93 | |||
| 500 | $ 3.68 | |||
| 1000 | $ 3.44 | |||
Description
General part information
PCN-123 Series
General Purpose Relay SPST-NO (1 Form A) 23.5VDC Coil Through Hole
