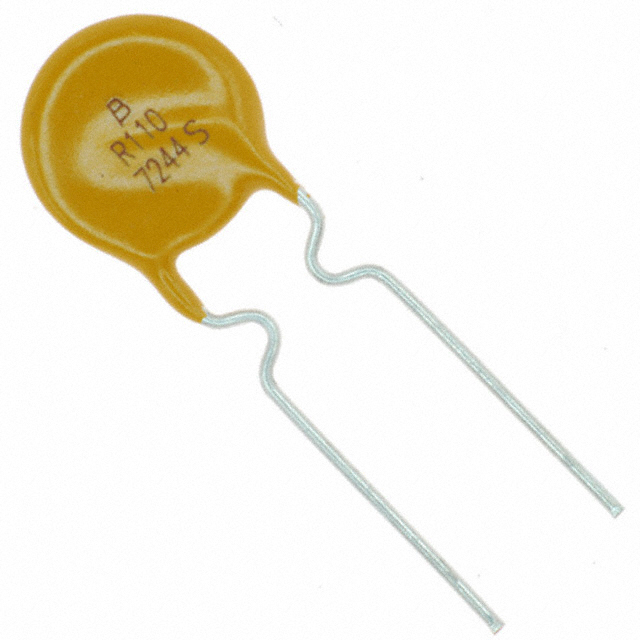

MF-R110-2

Active

Bourns Inc.

PTC RESET FUSE 30V 1.1A RADIAL

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESET FUSE 30V 1.1A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R110-2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.1 A
Current - Max [Max]	40 A
Current - Trip (It)	2.2 A
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	100 mOhms
Resistance - Post Trip (R1) (Max) [Max]	270 mOhms
Size / Dimension [diameter]	8.9 mm
Size / Dimension [diameter]	0.35 in
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Time to Trip	6.6 s
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Resistance - Post Trip (R1) (Max) [Max]	Type	Mounting Type	Time to Trip	Current - Max [Max]	Lead Spacing	Lead Spacing	Approval Agency	Height - Seated (Max)	Height - Seated (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)
Bourns Inc. MF-R110-2	85 °C	-40 °C	0.118 "	8.9 mm	3 mm	0.35 in	270 mOhms	Polymeric	Through Hole	6.6 s	40 A	5.1 mm	0.201 in	cURus TUV	14 mm	0.551 "	100 mOhms	Disc Radial	30 V	1.1 A	2.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 1.1 A Ih Through Hole Radial, Disc
