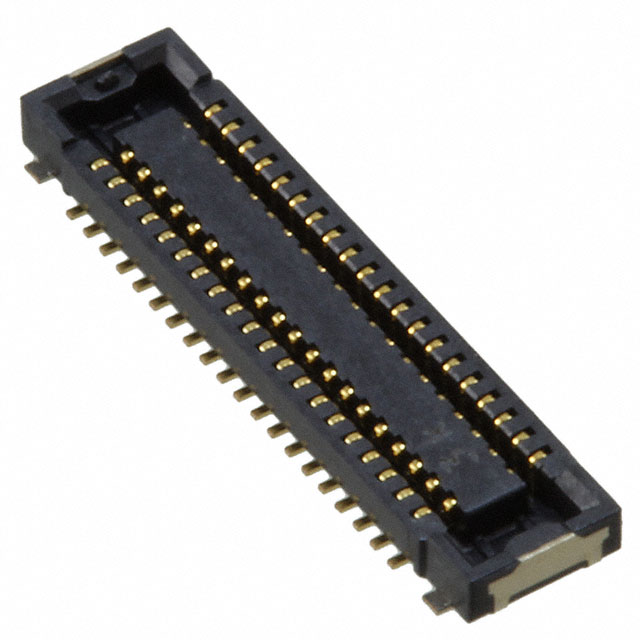

AXE740127A

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE740127A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Number of Rows	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Features	Number of Positions
Panasonic Electric Works AXE740127A	2	0.8 mm	Outer Shroud Contacts Socket	0.35 mm	0.014 in	Surface Mount	Gold	0.03 in	0.75 mm	Solder Retention	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
