Q-2I03W0003003M

Active

Amphenol Custom Cable

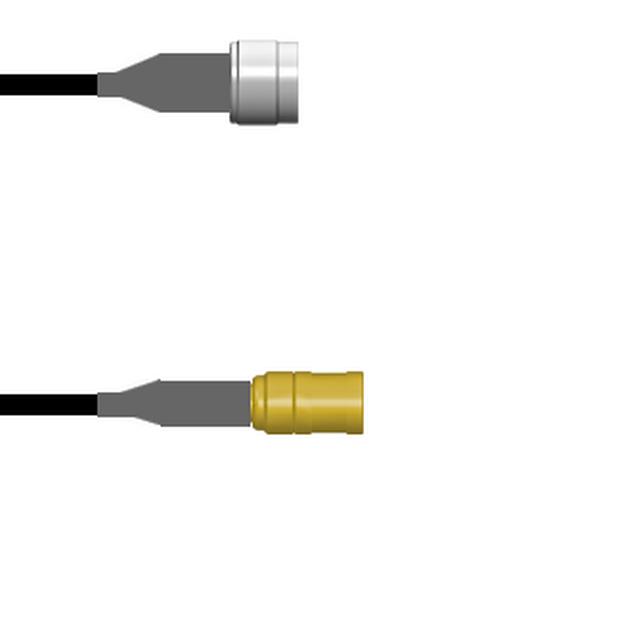

CBL ASSY SMB-NTYPE PLUG-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I03W0003003M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I03W0003003M

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2I03W0 Series

Part	Cable Type	Style	Frequency - Max [Max]	2nd Connector	Features	2nd Connector Mounting Type	1st Contact Gender	Length	Length	Length	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	Color	1st Connector
Amphenol Custom Cable Q-2I03W0005072i	RG-316	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female	6 ft	72 in	1.8 m	Free Hanging (In-Line)	50 Ohms	Male	Copper	SMB Plug
Amphenol Custom Cable Q-2I03W00050.5M	RG-316	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female		19.69 "	50 cm	Free Hanging (In-Line)	50 Ohms	Male	Copper	SMB Plug
Amphenol Custom Cable Q-2I03W0005024i	RG-316	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female		24 "	609.6 mm	Free Hanging (In-Line)	50 Ohms	Male	Copper	SMB Plug
Amphenol Custom Cable Q-2I03W0003084i	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female	7 ft	84 in	2.1 m	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug
Amphenol Custom Cable Q-2I03W0003024i	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female		24 "	609.6 mm	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug
Amphenol Custom Cable Q-2I03W00031.5M	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug
Amphenol Custom Cable Q-2I03W0003.75M	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female		29.53 "	750 mm	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug
Amphenol Custom Cable Q-2I03W0003002M	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug
Amphenol Custom Cable Q-2I03W0005012i	RG-316	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female		12 "	304.8 mm	Free Hanging (In-Line)	50 Ohms	Male	Copper	SMB Plug
Amphenol Custom Cable Q-2I03W0003003M	RG-174	SMB to N-Type	4 GHz	N-Type Plug	Shielded	Free Hanging (In-Line)	Female	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	50 Ohms	Male	Black	SMB Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.85
		25	$ 72.49
		50	$ 67.13
		100	$ 62.54
		250	$ 58.71

Description

General part information

Q-2I03W0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
