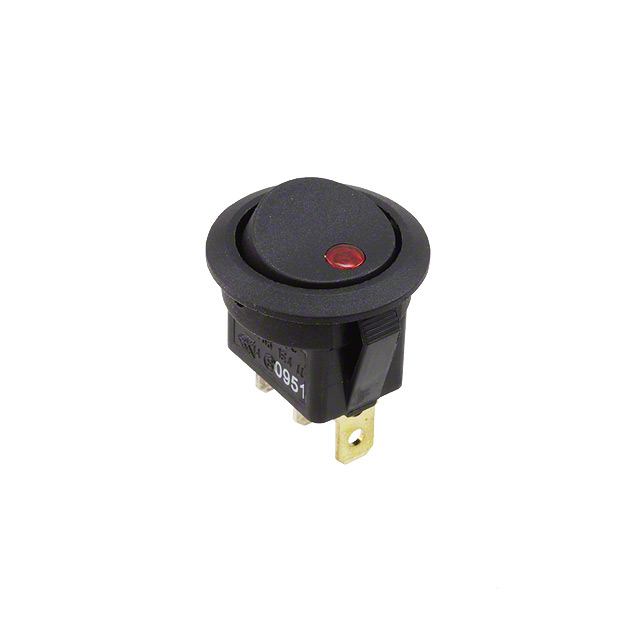

RR18131100-214

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RR18131100-214

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Approval Agency	UL, VDE, cUL
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Actuator Type	Illumination Type, Color	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Electrical Life	Switch Function	Circuit	Color - Actuator/Cap	Termination Style	Termination Style	Illumination Voltage (Nominal)	Approval Agency
E-Switch RR18131100-214	-20 C	105 ░C	No Marking	Round - Illuminated	LED Red	10 A	125 V	Panel Mount Snap-In	10000 Cycles	On-Off	SPST	Black	Quick Connect Solder	0.187 in 4.7 mm	12 VDC	cUL UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
