UMTW-5316-20A00-SMD-TT-SN-00

Active

SCHURTER Inc.

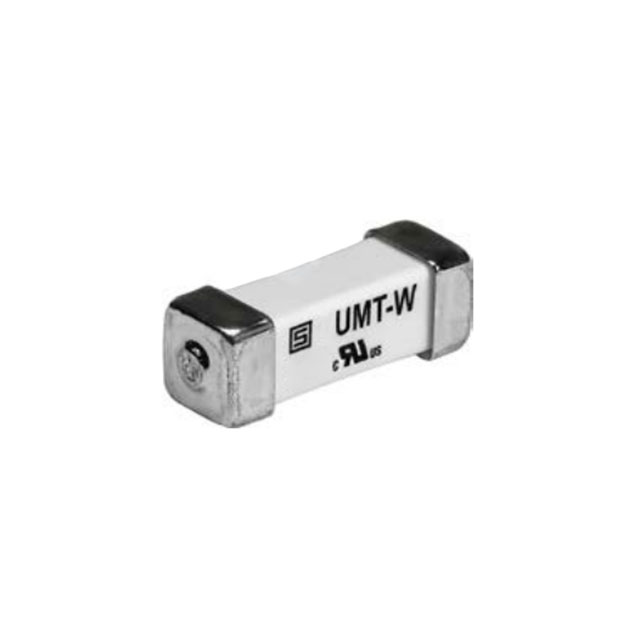

FUSE BRD MNT 20A 125VAC/VDC 2SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 20A 125VAC/VDC 2SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block

Technical documentation and resources

Specification	UMTW-5316-20A00-SMD-TT-SN-00	UMTW-5316 Series

Approval Agency	cURus, CE, UL2481-14, IEC	cURus, CE, UL2481-14, IEC
Breaking Capacity @ Rated Voltage	350 A	350 A
Current Rating (Amps)	20 A	5 - 20 A
Fuse Type	Board Mount	Board Mount
Melting I²t	2800	230 - 2800
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, Square End Block	2-SMD, Square End Block
Response Time	Slow Blow	Slow Blow
Size / Dimension [x]	0.606 "	0.606 "
Size / Dimension [x]	15.4 mm	15.4 mm
Size / Dimension [y]	5.35 mm	5.35 mm
Size / Dimension [y]	0.211 "	0.211 "
Size / Dimension [z]	0.211 in	0.211 in
Size / Dimension [z]	5.35 mm	5.35 mm
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

Part	Voltage Rating - AC	Package / Case	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Response Time	Mounting Type	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t
SCHURTER Inc. UMTW-5316-7A500-SMD-TT-SN-00	125 V	2-SMD, Square End Block	125 VDC	5.35 mm	0.606 "	15.4 mm	0.211 in	0.211 "	5.35 mm	Slow Blow	Surface Mount	Board Mount	7 A	350 A	CE, cURus, IEC, UL2481-14	-55 °C	125 °C
SCHURTER Inc. UMTW-5316-10A00-SMD-TT-SN-00	125 V	2-SMD, Square End Block	125 VDC	5.35 mm	0.606 "	15.4 mm	0.211 in	0.211 "	5.35 mm	Slow Blow	Surface Mount	Board Mount	10 A	350 A	CE, cURus, IEC, UL2481-14	-55 °C	125 °C
SCHURTER Inc. UMTW-5316-5A000-SMD-TT-SN-00	125 V	2-SMD, Square End Block	125 VDC	5.35 mm	0.606 "	15.4 mm	0.211 in	0.211 "	5.35 mm	Slow Blow	Surface Mount	Board Mount	5 A	350 A	CE, cURus, IEC, UL2481-14	-55 °C	125 °C	230
SCHURTER Inc. UMTW-5316-15A00-SMD-TT-SN-00	125 V	2-SMD, Square End Block	125 VDC	5.35 mm	0.606 "	15.4 mm	0.211 in	0.211 "	5.35 mm	Slow Blow	Surface Mount	Board Mount	15 A	350 A	CE, cURus, IEC, UL2481-14	-55 °C	125 °C	1480
SCHURTER Inc. UMTW-5316-20A00-SMD-TT-SN-00	125 V	2-SMD, Square End Block	125 VDC	5.35 mm	0.606 "	15.4 mm	0.211 in	0.211 "	5.35 mm	Slow Blow	Surface Mount	Board Mount	20 A	350 A	CE, cURus, IEC, UL2481-14	-55 °C	125 °C	2800
