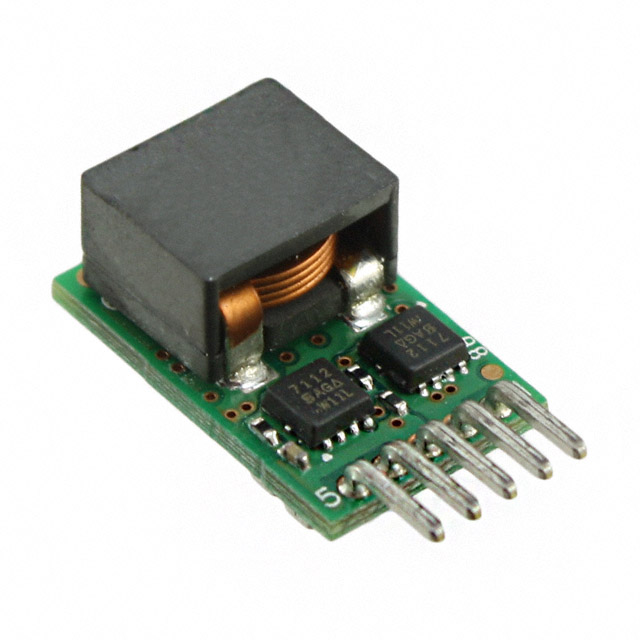

NE12S0A0V06PNFA
ObsoleteDelta Electronics
DC DC CONVERTER 0.6-5.1V 30W
NE12S0A0V06PNFA
ObsoleteDelta Electronics
DC DC CONVERTER 0.6-5.1V 30W
Description
General part information
NE12S0 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.1V 6A 3.1V - 13.8V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NE12S0A0V06PNFA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 6 A |
| Efficiency | 94.5 % |
| Features | Remote On/Off, OCP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 113 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.65 in |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.43 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 13.8 V |
| Voltage - Input (Min) | 3.1 V |
| Voltage - Output 1 (Max) | 5.1 V |
| Voltage - Output 1 (Min) | 0.6 V |
